PE7016-1

Overview

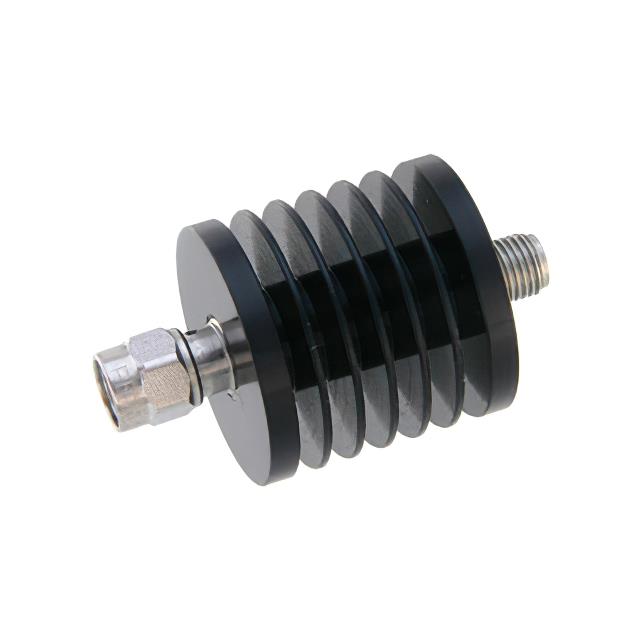

The Pasternack PE7016-1 is a fixed RF attenuator providing 1 dB attenuation. It features SMA male to SMA female connectors and operates up to 18 GHz. The unit is rated for 10 Watts power handling at the specified attenuation value. Construction includes an aluminum heatsink with a black anodized body. Voltage Standing Wave Ratio (VSWR) is 1.4:1. Operating temperature range spans from -65°C to +125°C.

Feature Summary

• Fixed 1 dB attenuation value
• SMA male to SMA female interface
• Aluminum heatsink construction
• Black anodized finish

Applications

• RF signal level adjustment
• Microwave circuit testing
• Signal path power reduction

Procurement Notes

Verify connector gender and impedance match requirements before ordering. Confirm frequency coverage aligns with system specifications up to 18 GHz. Check power rating suitability for intended signal levels. Ensure environmental temperature ranges meet operational needs between -65°C and +125°C. Validate physical dimensions for integration into existing assemblies.

Selection Notes

Select this component when precise 1 dB attenuation is required in microwave applications. Suitable for systems utilizing SMA interfaces. Consider thermal management capabilities due to aluminum heatsink design. Verify compatibility with surrounding components regarding size and mounting constraints. Ensure operating frequencies remain within the 18 GHz limit for optimal performance.

Part Context

This part belongs to Pasternack's fixed attenuator line, designed for reliable signal control in RF environments. The series offers various attenuation values and connector configurations. Fixed attenuators provide stable performance without variable adjustment mechanisms. This specific model emphasizes high-frequency operation and robust thermal dissipation through its heatsink structure.

Replacement Considerations

No public confirmed substitute part numbers are available.
