PE7016-10

Overview

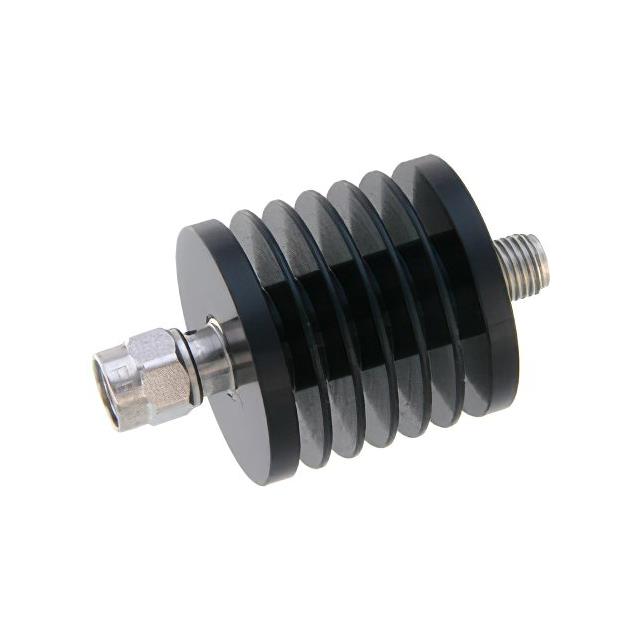

The Pasternack PE7016-10 is a fixed RF attenuator module designed for high-frequency applications. It provides a nominal attenuation of 10 dB with a tolerance of ±0.5 dB across a frequency range from DC to 18 GHz. The component features SMA male-to-female connectors and operates at a 50 Ohm impedance. It is rated for a maximum continuous wave power of 10 Watts. The unit exhibits a Voltage Standing Wave Ratio (VSWR) of less than 1.4:1, ensuring efficient signal transmission. The operating temperature range extends up to +125°C, supporting robust performance in demanding environments.

Feature Summary

• Bidirectional signal handling capability
• Black anodized housing for durability
• SMA connector interface for standard integration

Applications

• RF instrumentation systems
• Precision measurement setups
• Microwave circuit testing

Procurement Notes

Verify the specific datasheet version for the PE7016-10 to confirm exact mechanical dimensions and connector gender orientation prior to integration. Ensure that the thermal management strategy accounts for the 10 Watt power rating and the +125°C maximum operating temperature limit. Confirm that the SMA interfaces match the system requirements for impedance and frequency stability up to 18 GHz.

Selection Notes

Select this model when a precise 10 dB attenuation value is required within the DC to 18 GHz spectrum. Consider the 10 Watt power handling capacity for high-power signal paths. The SMA interface suits applications requiring compact, standardized connections. Evaluate the bidirectional nature if signal flow direction varies within the system architecture.

Part Context

This component belongs to the Pasternack PE7016 series of connectorized attenuators. The series offers various attenuation values while maintaining consistent electrical performance across the microwave frequency range. These modules are engineered for reliability in test and measurement environments where stable attenuation characteristics are critical for accurate signal analysis.

Replacement Considerations

No public substitute part numbers are documented.
