Product Detailed Parameters

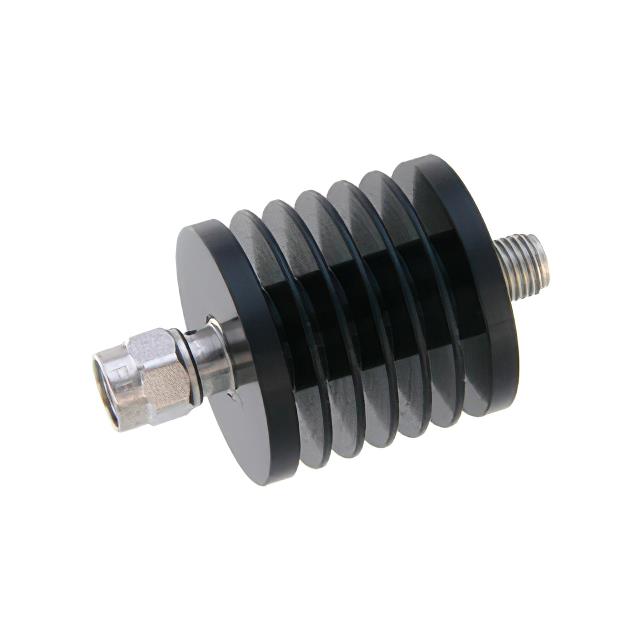

- Description：2 dB Fixed Attenuator, SMA Male
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Attenuation Value：2dB
- Frequency Range：0 Hz ~ 18 GHz
- Power (Watts)：10W
- Impedance：50 Ohms
- Grade：-
- Qualification：-
- Package / Case：SMA In-Line Module
Download product information
Overview
The Pasternack PE7016-2 is a fixed attenuator featuring SMA male to SMA female connectors. It provides an attenuation value of 2 dB with a frequency range of 0 Hz to 18 GHz. The device has a power rating of 10 Watts and operates within a maximum temperature of +125 C. Constructed with a black anodized aluminum heatsink body, it ensures thermal stability. The component maintains a 50 Ohm impedance standard for RF applications.
Feature Summary
- Features a black anodized aluminum heatsink body for effective thermal management
- Provides precise 2 dB fixed signal attenuation
- Supports high-frequency operation up to 18 GHz
- Utilizes durable SMA connector interface
Applications
- RF signal level adjustment in test equipment
- Attenuation in wireless communication systems
- Signal conditioning in microwave circuits
- Laboratory measurement setups
Procurement Notes
Verify the specific model designation PE7016-2 against official Pasternack documentation to confirm the 2 dB attenuation value and SMA connector configuration. Ensure compatibility with system requirements regarding the 10 Watt power rating and 18 GHz frequency limit before procurement. Cross-reference datasheets for mechanical dimensions and thermal specifications.
Selection Notes
Select this component when a fixed 2 dB attenuation is required for SMA-based RF designs. Consider the 10 Watt power handling capacity and 18 GHz operational bandwidth. Evaluate the black anodized aluminum heatsink design for thermal performance needs. Confirm impedance matching and connector gender requirements for integration into existing circuitry.
Part Context
This component belongs to the Pasternack PE7016 series of fixed attenuators. The series includes variants with different attenuation values such as PE7016-10 and PE7016-20. All units share similar construction features including SMA connectors and aluminum heatsink bodies, designed for consistent performance across various RF frequencies up to 18 GHz.
Replacement Considerations
PE7016-40
FAQ
What is the maximum operating frequency?
The maximum operating frequency is 18 GHz.
What is the power rating?
The power rating is 10 Watts.
