PE7016-3

Overview

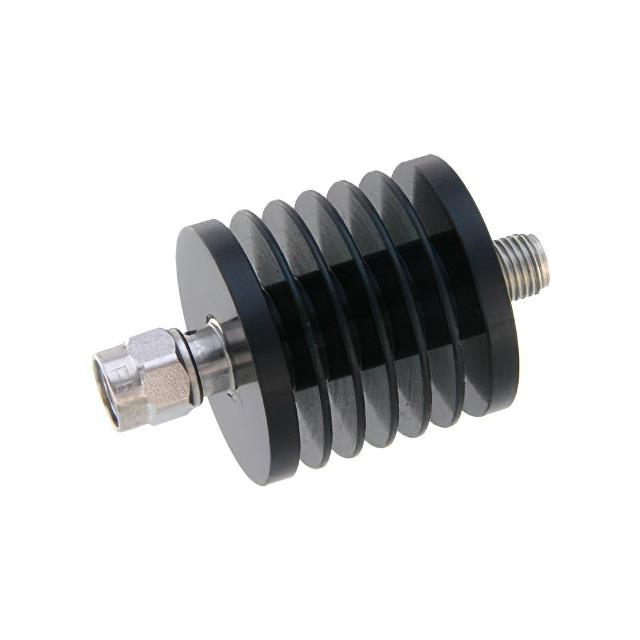

The Pasternack PE7016-3 is a fixed RF attenuator designed for high-frequency applications up to 18 GHz. It provides a precise attenuation value of 3 dB with a power rating of 10 Watts. The component features SMA male-to-female connectors and operates within an impedance of 50 Ohms. Constructed with a black anodized aluminum heatsink body, it ensures thermal stability during operation.

Feature Summary

• Fixed attenuation design providing consistent signal reduction
• High-frequency capability extending to 18 GHz
• Robust thermal management via anodized aluminum heatsink body

Applications

• RF test and measurement equipment
• Signal conditioning in microwave circuits
• Attenuation stages in communication systems

Procurement Notes

Verify the specific connector gender configuration (Male to Female) matches the system interface requirements. Confirm that the 10 Watt power rating and 18 GHz frequency limit are sufficient for the intended application environment. Ensure the SMA interface type aligns with existing cabling infrastructure.

Selection Notes

Select this model when a fixed 3 dB reduction is required at frequencies up to 18 GHz. The 10 Watt power handling capacity makes it suitable for moderate power levels. The SMA interface offers widespread compatibility with standard RF components.

Part Context

This component belongs to the Pasternack PE7016 series of fixed attenuators. The series includes various attenuation values such as 1 dB, 6 dB, and 30 dB, all sharing similar construction characteristics like the anodized aluminum heatsink body and SMA connectors.

Replacement Considerations

Compatible substitutes include other 3 dB fixed attenuators from Pasternack or third-party manufacturers offering SMA Male-to-Female interfaces with comparable 18 GHz frequency ranges and 10 Watt power ratings.
