PE7016-30

Overview

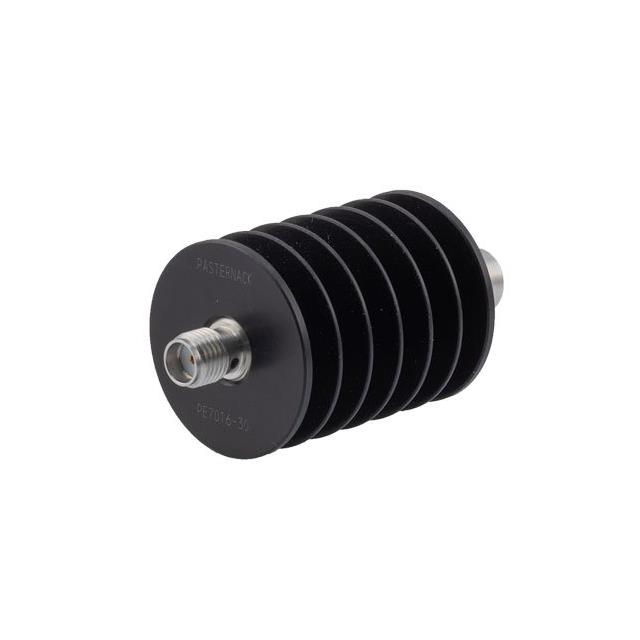

The PE7016-30 is a fixed directional attenuator manufactured by Pasternack. It provides a nominal attenuation of 30 dB with an impedance of 50 Ohms. The device operates within a frequency range from DC to 18 GHz. It features SMA male and SMA female connectors. The unit is housed in a black anodized aluminum heatsink body. The maximum input power rating is 10 Watts. The maximum VSWR is 1.45:1 across the frequency range. The attenuation accuracy is specified as ±1.5 dB.

Feature Summary

• Directional fixed attenuation design
• Black anodized aluminum heatsink body for thermal management
• SMA connector interface

Applications

• RF signal level control
• Test and measurement equipment
• Communication systems

Procurement Notes

Verify the specific datasheet version for the PE7016-30 to confirm current manufacturing status and detailed mechanical dimensions. Ensure compatibility with system requirements regarding connector type, power handling, and frequency range before procurement. Cross-reference official manufacturer documentation for any updates on material specifications or compliance certifications.

Selection Notes

Select this component when a precise 30 dB reduction is required at frequencies up to 18 GHz. The SMA interface suits standard laboratory and industrial RF setups. Consider the 10 Watt power rating and heatsink construction for applications involving moderate signal levels where thermal dissipation is necessary. Verify that the directional nature aligns with the circuit topology.

Part Context

This part belongs to Pasternack's line of fixed attenuators designed for high-frequency applications. The series typically utilizes robust metal housings to maintain performance stability. The PE7016-30 specifically targets scenarios requiring significant signal reduction within the UHF and microwave bands using standard SMA connections.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
