PE7016-40

Overview

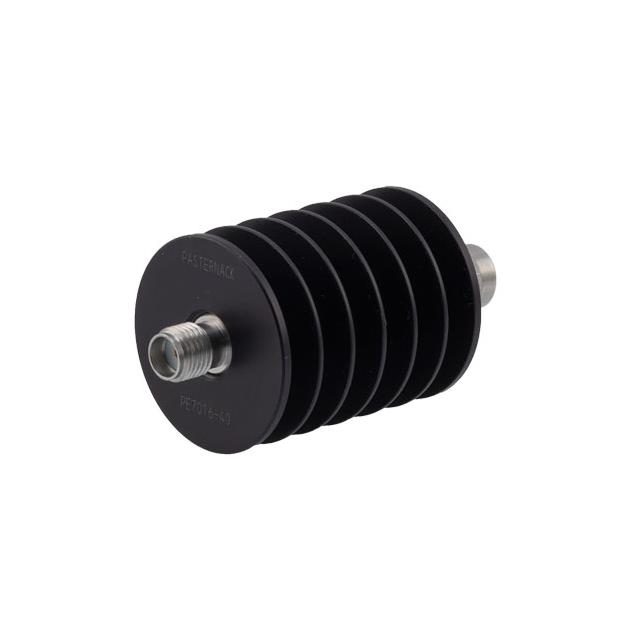

The Pasternack PE7016-40 is a fixed RF attenuator designed for high-frequency applications up to 18 GHz. It provides a precise attenuation value of 40 dB with a nominal impedance of 50 Ohms. The device supports a maximum power handling capacity of 10 Watts at the stated attenuation level. It features SMA male to SMA female connectors for reliable in-line integration. The unit utilizes a black anodized aluminum heatsink body to ensure thermal stability and durability during operation.

Feature Summary

• Fixed attenuation design providing consistent signal reduction
• High-frequency performance rated up to 18 GHz
• Robust construction using black anodized aluminum heatsink body
• Standard SMA connector interface for easy system integration

Applications

• Microwave test and measurement setups requiring precise signal reduction
• RF circuit protection by lowering signal levels before sensitive components
• Signal conditioning in communication systems operating within the specified frequency range

Procurement Notes

Verify that the required attenuation value matches the specific application needs, as this model provides a fixed 40 dB reduction. Confirm compatibility with SMA connectors on both ends of the assembly. Ensure the operational environment does not exceed the 10 Watt power rating or the 18 GHz frequency limit. Check datasheet specifications for VSWR and insertion loss details critical for system performance validation.

Selection Notes

Select this component when a fixed, high-value attenuation is necessary for frequencies extending to 18 GHz. Consider the 10 Watt power handling capability for high-power signal paths. The SMA interface suits standard coaxial testing environments. Evaluate if the fixed nature meets the design requirements compared to variable alternatives.

Part Context

This part belongs to the series of fixed microwave attenuators manufactured by Pasternack. These devices are engineered for precision and reliability in RF environments. The series typically offers various attenuation values while maintaining consistent impedance and connector standards across the product line.

Replacement Considerations

Publicly confirmed parameter-equivalent substitutes include PE7016-2 and PE7016-40 from Pasternack. Verify that any replacement maintains the same 40 dB attenuation, 50 Ohm impedance, and SMA connector configuration.
