PE7016-6

Overview

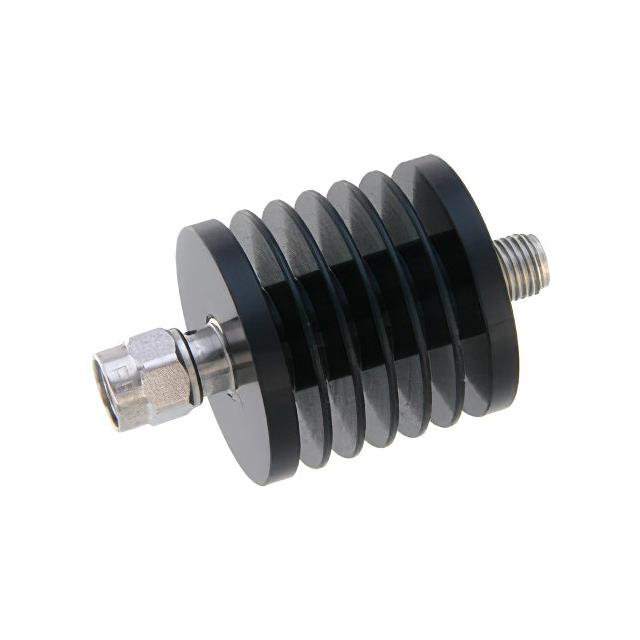

The Pasternack PE7016-6 is a fixed RF attenuator with a nominal attenuation of 6 dB. It operates from DC to 18 GHz and features SMA male-to-female connectors. The device is rated for 10 Watts at the stated attenuation value and utilizes a black anodized aluminum heatsink body. It maintains a 50 Ohm impedance.

Feature Summary

• Fixed 6 dB attenuation performance
• Broadband operation up to 18 GHz
• SMA male to female interface
• Black anodized aluminum heatsink construction

Applications

• Microwave signal conditioning
• RF test and measurement instrumentation
• Telecommunications equipment

Procurement Notes

Verify the specific part number PE7016-6 against official Pasternack documentation to confirm the 6 dB attenuation rating, 18 GHz frequency range, and 10 Watt power handling specifications. Ensure compatibility with SMA connector interfaces and 50 Ohm system requirements before procurement.

Selection Notes

Select this component when a precise 6 dB reduction is required in microwave circuits operating up to 18 GHz. The integrated heatsink design supports high-power applications rated at 10 Watts. Verify that SMA male-to-female connectivity aligns with the system architecture.

Part Context

This component belongs to the Pasternack PE7016 series of fixed attenuators. The series includes variants with different attenuation values, such as the PE7016-20 (5 dB) and PE7016-6 (6 dB). These devices share common design characteristics including SMA interfaces and aluminum heatsink bodies.

Replacement Considerations

Compatible substitutes include other 6 dB fixed attenuators with SMA connectors and similar power ratings. Verify frequency coverage up to 18 GHz and 10 Watt power handling capabilities to ensure functional equivalence.
