PE7017-10

Overview

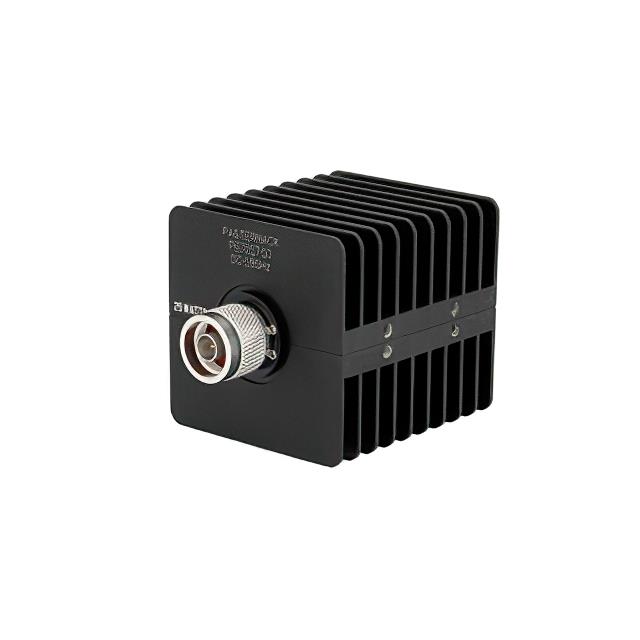

The Pasternack PE7017-10 is a fixed RF attenuator designed for high-power applications. It provides a precise attenuation value of 10 dB with a characteristic impedance of 50 Ohms. The device utilizes N-type connectors, featuring an N Male input and an N Female output configuration. It is rated to handle up to 25 Watts of power at the stated attenuation level across a frequency range extending up to 18 GHz. The unit is housed in a black body construction suitable for robust interconnect environments.

Feature Summary

• Provides fixed 10 dB signal attenuation
• Supports high power handling up to 25 Watts
• Operates effectively up to 18 GHz frequency range
• Features standard N Male to N Female interface

Applications

• High-power microwave test and measurement setups
• RF signal path power reduction in communication systems
• Laboratory equipment requiring stable attenuation
• Military and aerospace RF interconnects

Procurement Notes

Verify the specific datasheet version from Pasternack Enterprises to confirm current manufacturing status and compliance details. Ensure that the 25 Watt power rating aligns with your system's thermal management capabilities. Confirm connector gender and mating compatibility before integration. Check for any recent updates to the product specifications or RoHS compliance documentation directly from the manufacturer's official channels.

Selection Notes

Select this component when a fixed 10 dB loss is required in a 50 Ohm system operating at frequencies up to 18 GHz. The 25 Watt power rating distinguishes it from lower-power variants, making it suitable for high-energy RF paths. Ensure the N-type connector interface matches existing cabling and fixture requirements. Consider thermal dissipation needs given the high power handling capability.

Part Context

This part belongs to the Pasternack series of fixed attenuators, specifically those utilizing N-type connectors. It serves as a passive component within RF chains to control signal levels. Unlike variable attenuators, this model offers a static attenuation value, ensuring consistent performance without adjustment mechanisms. It complements other Pasternack interconnect solutions by providing reliable signal conditioning in demanding environments.

Replacement Considerations

Direct substitutes must match the 10 dB attenuation, 50 Ohm impedance, N Male/Female connectors, 25 Watt power rating, and 18 GHz frequency limit. Verify mechanical dimensions and mounting style if space constraints exist. Cross-reference with other manufacturers' N-type fixed attenuators meeting identical electrical and power specifications.
