PE7017-20

Overview

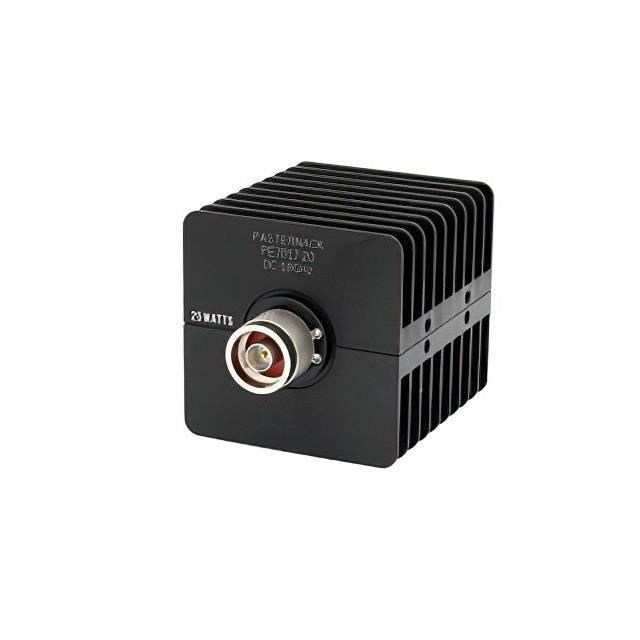

The Pasternack PE7017-20 is a fixed RF attenuator designed for high-frequency applications up to 18 GHz. It provides a precise attenuation value of 20 dB with a power rating of 25 Watts. The component features N male to N female connectors and utilizes black anodized aluminum heatsink construction for thermal management.

Feature Summary

• Fixed 20 dB attenuation performance
• Operates up to 18 GHz frequency range
• 25 Watt power handling capability
• N male to N female connector interface

Applications

• Microwave signal level control
• RF test and measurement setups
• Signal path attenuation in communication systems

Procurement Notes

Verify the specific model suffix against official documentation to confirm connector gender and attenuation value. Ensure the operating environment does not exceed the 25 Watt power rating or 18 GHz frequency limit. Confirm mechanical compatibility with existing N-type interfaces before integration.

Selection Notes

Select this component when a fixed 20 dB reduction is required in microwave circuits. Consider the 25 Watt power rating for high-power signal paths. Verify that N-type connectors match the system interface requirements. Check if the 18 GHz upper frequency limit meets the application spectrum needs.

Part Context

This part belongs to the Pasternack PE7017 series of fixed attenuators. These components are engineered for stable performance in RF environments. The series offers various attenuation values and power ratings, providing standardized solutions for signal conditioning in professional electronic systems.

Replacement Considerations

Consult official datasheets for direct substitutes with matching 20 dB attenuation, 25 Watt rating, and N-type connectors. Verify frequency range compatibility up to 18 GHz. Ensure mechanical dimensions and mounting styles align with existing assembly constraints.
