PE7017-3

Overview

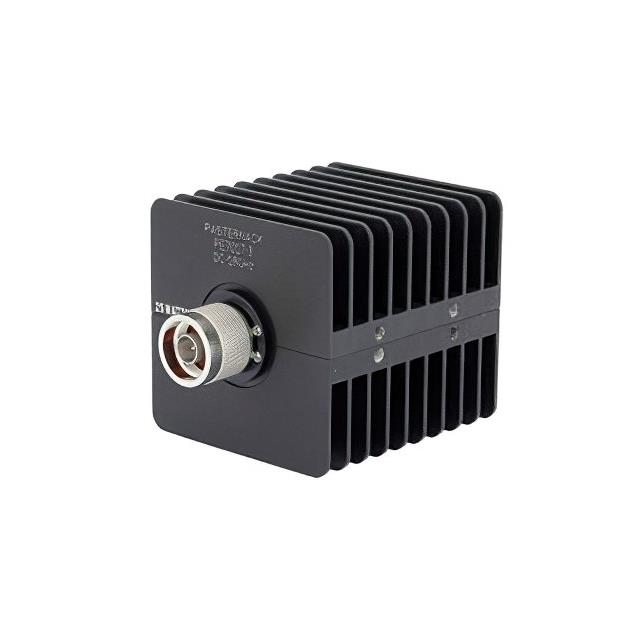

The PE7017-3 is a fixed directional attenuator manufactured by Pasternack. It provides an attenuation value of 3 dB with a system impedance of 50 Ohms. The device operates over a frequency range from DC to 18 GHz. It features N Male and N Female connectors. The unit is rated for a maximum input power of 25 Watts within the specified frequency band.

Feature Summary

• Fixed 3 dB attenuation value
• Directional signal handling capability
• N Male to N Female connector configuration

Applications

• RF signal level reduction in test setups
• Impedance matching in microwave circuits
• Signal isolation in communication systems

Procurement Notes

Verify the specific datasheet version for the PE7017-3 model to confirm mechanical dimensions and connector specifications. Ensure the application environment does not exceed the 25 Watt power rating or 18 GHz frequency limit. Check for RoHS compliance status if required by project regulations. Confirm connector gender and interface standards match the existing infrastructure before integration.

Selection Notes

Select this component when a precise 3 dB reduction is required at frequencies up to 18 GHz. The N-type interface suits standard laboratory and industrial RF environments. Consider the 25 Watt power handling capacity for high-power signal paths. Verify that the directional nature aligns with the system's signal flow requirements.

Part Context

This part belongs to Pasternack's line of fixed attenuators designed for RF and microwave applications. It serves as a passive component for controlling signal amplitude without introducing significant distortion. The product is distinct from variable or step attenuators due to its constant attenuation characteristic across the operational bandwidth.

Replacement Considerations

No public substitute part numbers are documented for this specific model.
