PE7017-40

Overview

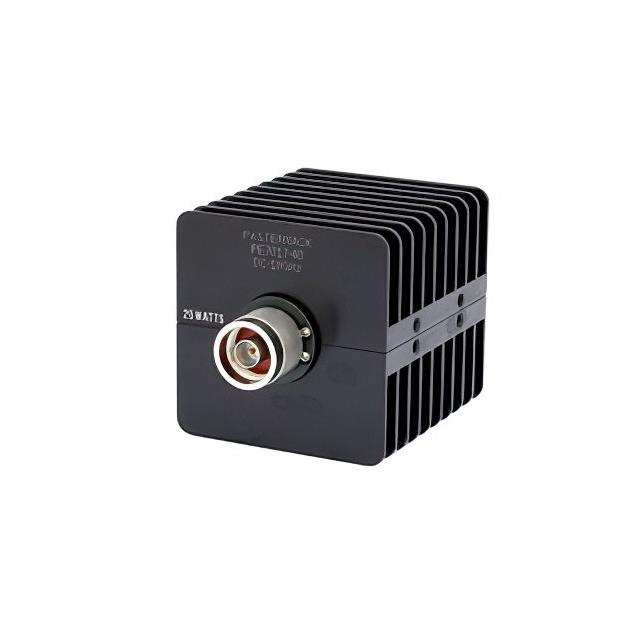

The Pasternack PE7017-40 is a fixed RF attenuator featuring N Male to N Female connectors. It provides a precise attenuation value of 40 dB with a maximum operating frequency of 18 GHz. The unit supports a power rating of 25 Watts and utilizes a black anodized aluminum heatsink body for thermal management.

Feature Summary

• Fixed 40 dB attenuation performance
• Operates up to 18 GHz frequency range
• 25 Watt power handling capability
• N Male to N Female connector interface

Applications

• RF signal level reduction in microwave systems
• Test and measurement equipment calibration
• Signal conditioning in communication networks
• Impedance matching between circuit stages

Procurement Notes

Verify the specific model designation against official Pasternack documentation to confirm the 40 dB attenuation value and 18 GHz frequency limit. Ensure connector gender matches the N Male to N Female configuration required for your system integration. Cross-reference datasheet specifications for power ratings before deployment.

Selection Notes

Select this component when a fixed 40 dB loss is required within an 18 GHz bandwidth. The N-type interface suits standard coaxial infrastructure. Consider the 25 Watt power rating for high-power applications. Verify environmental requirements against the aluminum heatsink construction.

Part Context

This attenuator belongs to Pasternack's fixed attenuator series designed for microwave frequencies. It serves as a passive component for controlling signal amplitude without active power sources. The design integrates thermal dissipation features suitable for continuous operation in RF environments.

Replacement Considerations

Compatible substitutes include other 40 dB fixed attenuators with N-type connectors rated for 18 GHz. Ensure replacement units match the 25 Watt power handling specification. Verify impedance compatibility and physical connector dimensions for direct interchangeability.
