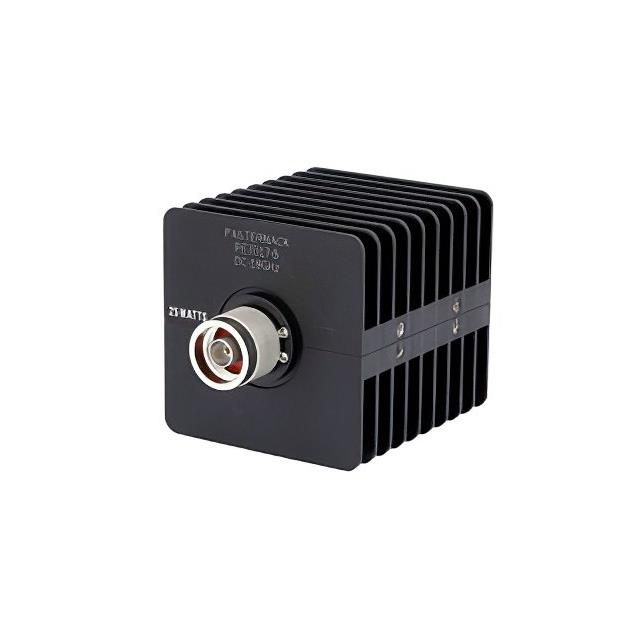

PE7017-6

$707.20

Description：6 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:4e1bef3f4503 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：6 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：6dB
Frequency Range：0 Hz ~ 18 GHz
Power (Watts)：25W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

PE7017-6

Overview

The Pasternack PE7017-6 is a fixed attenuator featuring N Male to N Female connectors. It provides an attenuation value of 6 dB and is rated for up to 25 Watts power handling. The component operates at frequencies up to 18 GHz. This unit belongs to the PE7017 series of fixed attenuators manufactured by Pasternack Enterprises.

Feature Summary

Fixed attenuation design with 6 dB loss
N Male to N Female connector configuration
Rated for 25 Watts maximum power
Operational frequency range extending to 18 GHz

Applications

RF signal level reduction in test and measurement setups
Impedance matching within microwave systems
Signal conditioning in communication infrastructure
Attenuation requirements in radar applications

Procurement Notes

Verify the specific datasheet for the PE7017-6 model to confirm current manufacturing status and compliance details. Ensure that the required 25 Watt power rating and 18 GHz frequency performance align with your system specifications before procurement. Check for any regional shipping restrictions or availability limitations associated with this part number through authorized distributors.

Selection Notes

Select the PE7017-6 when a precise 6 dB attenuation is required between N Male and N Female interfaces. Consider its 25 Watt power handling capability for high-power RF environments. Verify that the 18 GHz upper frequency limit meets the operational bandwidth needs. Compare against other values in the PE7017 series if different attenuation levels are necessary.

Part Context

The PE7017-6 is part of the PE7017 series of fixed attenuators from Pasternack. This series offers various attenuation values while maintaining consistent N Male to N Female connectivity. These components are designed for reliable performance in RF applications requiring stable signal attenuation across microwave frequencies.

Replacement Considerations

Other models within the PE7017 series offer different attenuation values but share the same connector type and general specifications. Direct substitutes must match the 6 dB attenuation, N Male/Female interface, and 18 GHz frequency rating.
