PE7018-30

Overview

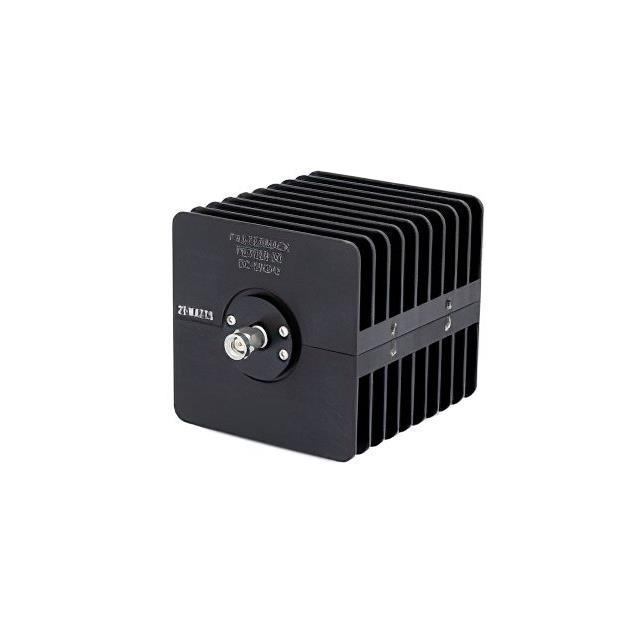

The PE7018-30 is a fixed attenuator manufactured by Pasternack, designed for radio frequency applications. It provides a nominal attenuation of 30 dB with a 50 Ohm impedance. The device operates across a frequency range from 0 Hz to 18 GHz. It features an SMA male connector on one end and an SMA female connector on the other, forming an in-line module configuration. The unit is rated for a maximum power handling capacity of 25 Watts. The housing is constructed from black anodized aluminum to ensure durability and thermal management.

Feature Summary

• Fixed 30 dB attenuation value
• SMA male to SMA female interface
• 25 Watt power rating
• Black anodized aluminum construction

Applications

• RF signal level reduction
• Test and measurement setups
• Communication system integration

Procurement Notes

Verify the specific datasheet version for the PE7018-30 to confirm current manufacturing status and compliance details. Ensure that the SMA connector gender orientation matches the system requirements, as this model specifies a male-to-female configuration. Check for any recent updates regarding RoHS or REACH compliance documentation provided by Pasternack Enterprises before finalizing procurement orders.

Selection Notes

Select the PE7018-30 when a precise 30 dB attenuation is required within the 0 Hz to 18 GHz bandwidth. The 25 Watt power rating makes it suitable for higher power RF environments compared to standard low-power attenuators. The SMA interface ensures compatibility with common laboratory and field equipment. Consider the physical size and mounting style if space constraints exist in the assembly.

Part Context

This component belongs to the Pasternack line of RF attenuators, specifically the fixed type category. It serves as a passive interconnect device used to reduce signal amplitude without introducing significant distortion. The product is part of a broader portfolio offering various attenuation values and connector types to support diverse RF engineering needs.

Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided source material. Users requiring different attenuation values or connector types should consult the manufacturer's catalog for equivalent models within the same series.
