PE7018-6

Overview

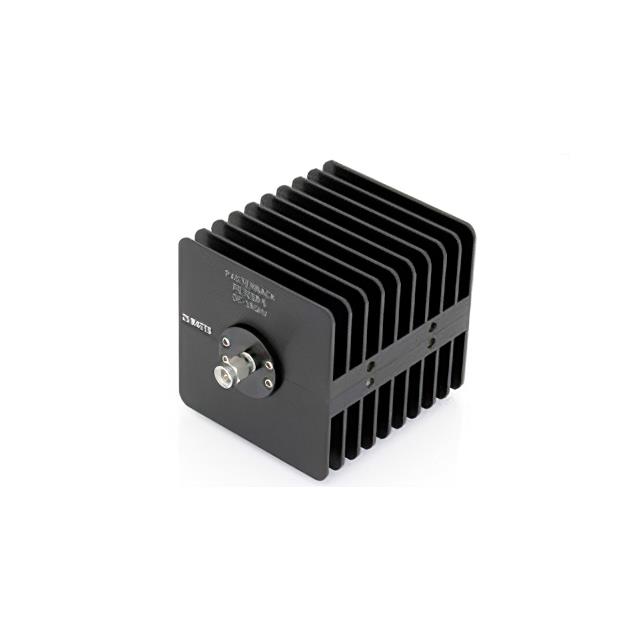

The Pasternack PE7018-6 is a fixed RF attenuator designed for high-frequency applications up to 18 GHz. It provides a precise attenuation value of 6 dB with a power handling capacity rated at 25 Watts. The component utilizes SMA connectors, featuring a male interface on one end and a female interface on the other. Constructed with a black anodized finish, it serves as a reliable passive device for signal level adjustment in microwave systems requiring stable performance across a wide frequency range.

Feature Summary

• Provides fixed 6 dB attenuation for consistent signal reduction
• Supports operation frequencies up to 18 GHz
• Handles power loads rated at 25 Watts
• Features SMA male to SMA female connector configuration

Applications

• Microwave test and measurement setups
• RF signal path power level control
• Communication system component integration
• Laboratory equipment signal conditioning

Procurement Notes

Verify the specific connector gender orientation (SMA Male to SMA Female) against system requirements before ordering. Confirm that the 25 Watt power rating aligns with peak operational loads. Ensure the 18 GHz frequency limit meets the application's spectral needs. Check for compliance certifications such as RoHS if required by project specifications.

Selection Notes

Select this model when a fixed 6 dB reduction is necessary within an 18 GHz bandwidth. Consider the 25 Watt power handling capability for high-power environments. Choose between SMA interfaces if compatible with existing infrastructure. Evaluate thermal management requirements given the power dissipation characteristics of the attenuator.

Part Context

This component belongs to the Pasternack fixed attenuator series, specifically engineered for microwave frequencies. It represents a standard passive interconnect solution for maintaining signal integrity while reducing amplitude. The product line focuses on reliability and precision in high-frequency electronic environments.

Replacement Considerations

No public substitute part numbers are documented.
