PE7019-6

Overview

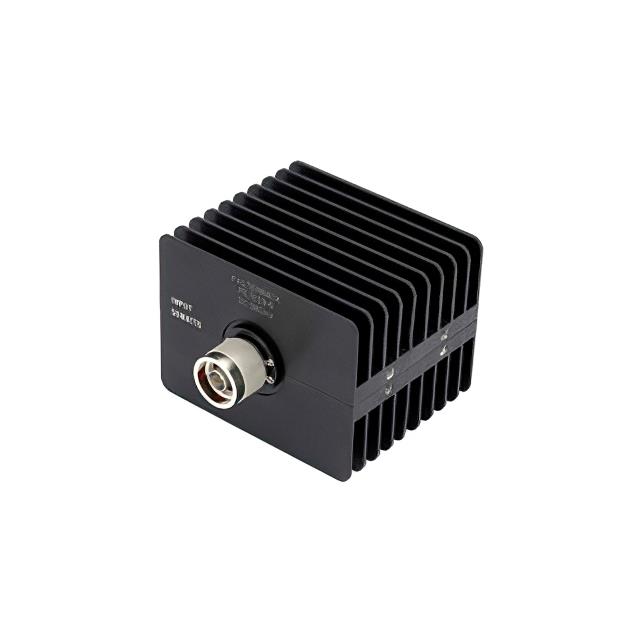

The Pasternack PE7019-6 is a fixed RF attenuator designed for high-frequency applications. It features an N male connector on one side and an N female connector on the other, providing a precise attenuation value of 6 dB. The device is rated to operate at frequencies up to 18 GHz and can handle power levels of up to 50 Watts at the stated attenuation value. The unit utilizes a directional black anodized aluminum heatsink body for thermal management.

Feature Summary

• Directional design with N male to N female interface
• Black anodized aluminum heatsink body construction
• Rated for operation up to 18 GHz frequency range

Applications

• Microwave signal testing and measurement systems
• RF instrumentation setups requiring fixed attenuation
• Telecommunications equipment signal conditioning

Procurement Notes

Verify the specific part number PE7019-6 against official Pasternack documentation to confirm the 6 dB attenuation rating and 50 Watt power handling capacity. Ensure compatibility with N-type connectors in your system architecture. Check for RoHS compliance status if required by your manufacturing standards. Confirm the directional nature of the component matches your signal flow requirements.

Selection Notes

Select this component when a fixed 6 dB attenuation is required within an 18 GHz bandwidth. The N-type interface suits standard coaxial connections. Consider the 50 Watt power rating for high-power applications. The aluminum heatsink body aids in dissipating heat during continuous operation. Verify that the directional characteristic aligns with your circuit design needs.

Part Context

This model belongs to Pasternack's series of fixed microwave attenuators. These components are engineered for stability and precision in RF environments. The PE7019-6 variant specifically addresses the need for moderate signal reduction in high-frequency circuits. It complements other values in the PE7019 series, such as 10 dB, 20 dB, and 40 dB options, offering a standardized form factor across different attenuation levels.

Replacement Considerations

Compatible substitutes include other Pasternack models from the PE7019 series with identical N male to N female interfaces and similar power ratings. Ensure any replacement maintains the 18 GHz frequency limit and 6 dB attenuation specification. Verify mechanical dimensions and connector gender compatibility before integration.
