PE7020-6

Overview

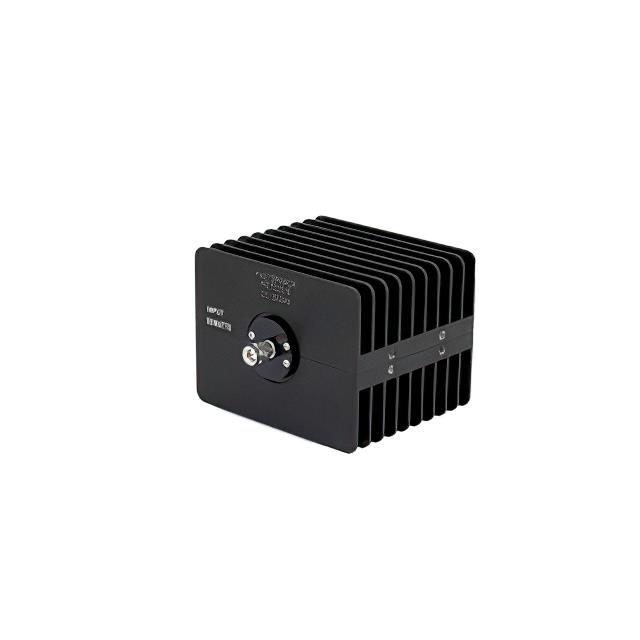

The Pasternack PE7020-6 is a fixed RF attenuator designed for high-frequency applications. It provides a precise attenuation value of 6 dB across a frequency range from 0 Hz to 18 GHz. The device operates with a characteristic impedance of 50 Ohms and can handle up to 50 Watts of power at the stated attenuation level. It features an SMA male connector on one side and an SMA female connector on the other, facilitating direct inline integration into transmission lines.

Feature Summary

• Directional black anodized aluminum heatsink body for thermal management
• SMA male to SMA female interface configuration
• Rated for 50 Watts power handling at specified attenuation

Applications

• RF signal path attenuation in microwave systems
• Test and measurement equipment calibration
• Signal level adjustment in communication networks

Procurement Notes

Verify the specific part number suffix against official Pasternack documentation to ensure correct connector gender and attenuation value. Confirm that the required frequency range up to 18 GHz and 50 Watt power rating align with system specifications. Check for any specific environmental or certification requirements such as REACH compliance before finalizing procurement.

Selection Notes

Select this component when a fixed 6 dB reduction is required within the 0-18 GHz spectrum. Ensure the system impedance matches the 50 Ohm specification. Consider the physical size and heatsink design if thermal dissipation is critical. Verify compatibility with existing SMA connectors in the assembly.

Part Context

This model belongs to the PE7020 series of fixed attenuators from Pasternack Enterprises. The series includes various attenuation values such as 10 dB, 20 dB, and 40 dB, all sharing similar construction and performance characteristics like the 18 GHz frequency limit and 50 Watt power rating.

Replacement Considerations

Direct substitutes may include other Pasternack models within the PE7020 series with different attenuation values if the dB requirement changes. Cross-brand replacements must match the 50 Ohm impedance, SMA connectors, 18 GHz frequency range, and 50 Watt power handling capabilities.
