PE7021-6

Overview

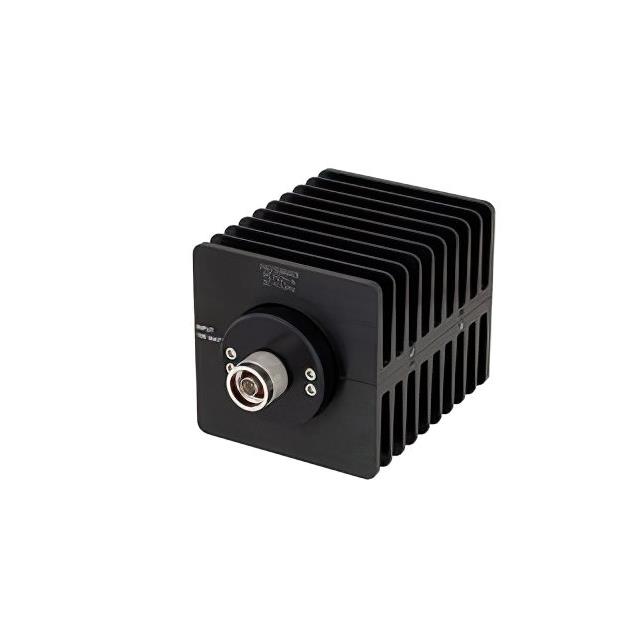

The Pasternack PE7021-6 is a fixed coaxial attenuator featuring Type N male to Type N female connectors. It provides a nominal attenuation of 6 dB with a maximum operating frequency of 1.5 GHz. The unit utilizes a directional black anodized aluminum heatsink body rated for 100 Watts power handling.

Feature Summary

• Directional signal attenuation design
• Robust anodized aluminum heatsink construction
• Standard Type N connector interface

Applications

• RF test and measurement instrumentation
• Telecommunications equipment signal conditioning
• General-purpose RF circuit testing

Procurement Notes

Verify the specific datasheet version for precise VSWR and directivity specifications. Confirm that the 100-watt rating aligns with your system's continuous wave power requirements. Ensure connector gender and polarity match the intended cable assembly or fixture interface.

Selection Notes

Select this component when a fixed 6 dB reduction is required within the 1.5 GHz bandwidth. The high-power rating supports demanding applications. Consider the directional nature if isolation from reflected signals is necessary for accurate measurements.

Part Context

This model belongs to Pasternack's series of fixed coaxial attenuators. Similar variants exist with different attenuation values, such as 10 dB or 20 dB options, sharing the same physical form factor and connector type for consistent integration.

Replacement Considerations

Compatible substitutes include other manufacturers' 6 dB Type N fixed attenuators rated for 1.5 GHz and 100 Watts. Verify mechanical dimensions and connector tolerances to ensure fitment in existing setups.
