PE7022-30

Overview

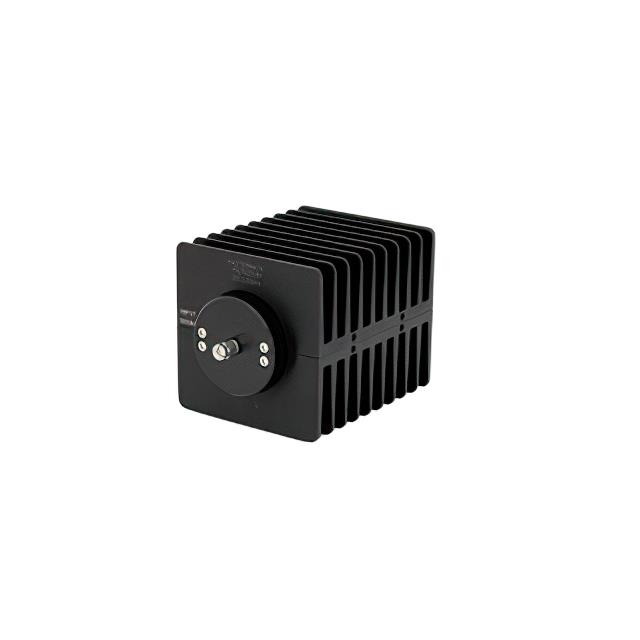

The Pasternack PE7022-30 is a fixed RF attenuator designed for high-power applications. It provides a nominal attenuation of 30 dB with a frequency range from 0 Hz to 1.5 GHz. The device features SMA male to SMA female connectors and operates at a 50 Ohm impedance. It is rated for 100 Watts of power handling capacity. The unit utilizes a directional aluminum heatsink with a black anodized body for thermal management.

Feature Summary

• Directional aluminum heatsink design for efficient thermal dissipation
• Black anodized finish on the housing for corrosion resistance
• SMA connector interface for standard RF integration

Applications

• High-power signal testing environments
• RF measurement systems requiring precise attenuation
• Communication equipment signal conditioning

Procurement Notes

Verify the specific datasheet version for the PE7022-30 to confirm current manufacturing status and detailed electrical tolerances. Ensure that the SMA connector gender and mating requirements align with the target system interface. Confirm that the 100 Watt power rating is sufficient for the intended operational environment, considering ambient temperature conditions.

Selection Notes

Select this component when a fixed 30 dB attenuation value is required within the 0 Hz to 1.5 GHz bandwidth. The 100 Watt power rating distinguishes it from lower-power variants, making it suitable for high-energy RF paths. The SMA interface ensures compatibility with standard coaxial test setups and equipment ports.

Part Context

This part belongs to the Pasternack fixed attenuator series, characterized by robust construction for demanding RF applications. The PE7022 series typically includes various attenuation values and power ratings, all sharing similar directional heatsink designs. This specific model represents the 30 dB variant optimized for moderate-to-high power levels up to 1.5 GHz.

FAQ

What is the maximum power rating of the PE7022-30?

The PE7022-30 is rated for 100 Watts of power handling.

Does the PE7022-30 have a directional heatsink?

Yes, the device features a directional aluminum heatsink with a black anodized body.
