PE7024-1

Overview

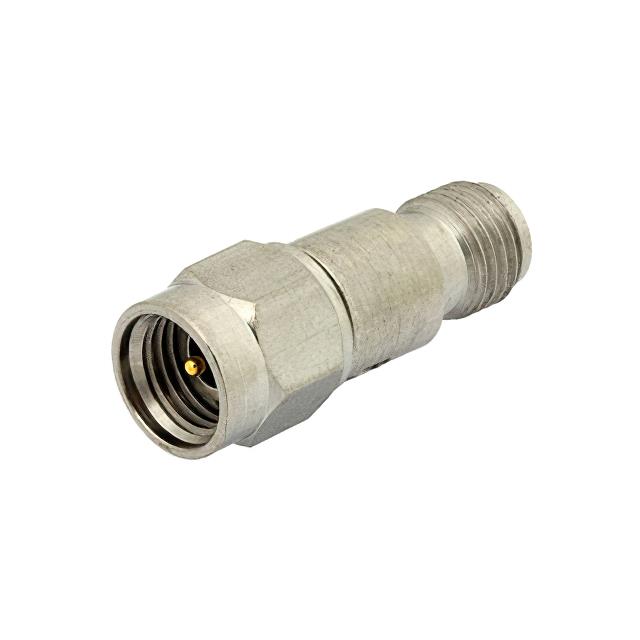

The Pasternack PE7024-1 is a fixed RF attenuator designed for high-frequency applications. It features a 2.92mm male connector on one side and a 2.92mm female connector on the other, facilitating inline integration into signal chains. The device provides a precise attenuation value of 1 dB. Constructed with a passivated stainless steel body, it ensures durability and consistent performance in demanding environments. This component is rated to operate effectively up to a maximum frequency of 26.5 GHz, making it suitable for microwave and millimeter-wave systems requiring stable signal reduction.

Feature Summary

• Provides a fixed 1 dB attenuation value for precise signal level control
• Features 2.92mm male-to-female connectors for direct inline integration
• Constructed with a passivated stainless steel body for environmental resilience

Applications

• Microwave test and measurement setups
• Signal conditioning in wireless communication systems
• Calibration equipment requiring precise attenuation steps

Procurement Notes

Verify the specific connector gender configuration matches the system requirements before ordering. Confirm that the 1 dB attenuation value aligns with the intended signal processing needs. Ensure the operating environment temperature and power levels remain within the specified ratings for the 2.92mm interface. Check for any specific packaging or handling instructions provided by the manufacturer to maintain connector integrity during installation.

Selection Notes

Select this model when a low attenuation value of 1 dB is required at frequencies up to 26.5 GHz. The 2.92mm interface offers superior performance compared to SMA connectors at higher frequencies. Consider the passivated stainless steel construction if corrosion resistance is a priority. Ensure the inline form factor fits within the available space constraints of the assembly.

Part Context

This component belongs to the RF Fixed Attenuators series from Pasternack. It is categorized as a connectorized attenuator, distinct from variable or step attenuators. The product line focuses on providing reliable signal attenuation solutions for high-frequency electronic applications. The 2.92mm interface indicates its suitability for applications extending beyond standard microwave ranges into millimeter-wave frequencies.

Replacement Considerations

Direct substitutes may include other 1 dB fixed attenuators with 2.92mm interfaces from Pasternack or compatible manufacturers. Verify that replacement parts maintain the same frequency range up to 26.5 GHz. Ensure the physical dimensions and connector genders are identical to avoid mechanical modifications. Check if alternative models offer similar power handling capabilities.
