PE7024-10

Overview

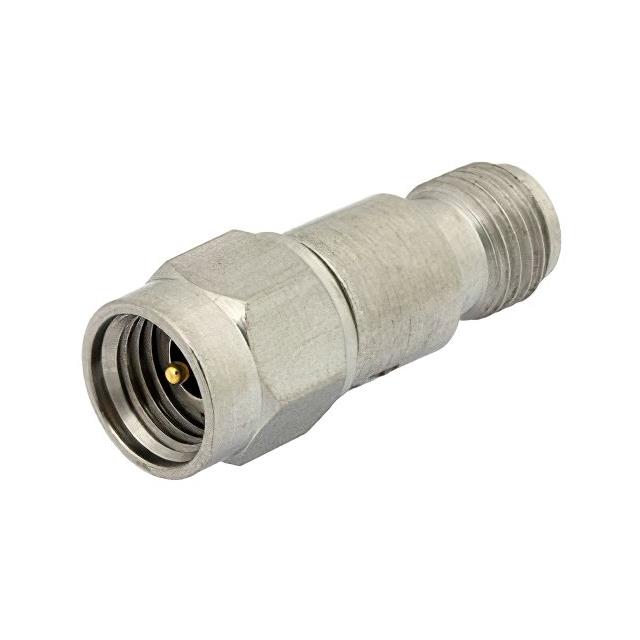

The PE7024-10 is a fixed RF attenuator manufactured by Pasternack, designed for high-frequency signal management. It features a 2.92mm male to 2.92mm female connector configuration, ensuring compatibility with precision microwave interconnect systems. The unit provides a nominal attenuation value of 10 dB, maintaining signal integrity across its operational bandwidth. Constructed with a passivated stainless steel body, the component offers durability and environmental resistance suitable for demanding applications. It is rated for a maximum power handling capacity of 2 watts, supporting continuous wave operations up to a frequency limit of 26.5 GHz. This bidirectional device serves as a critical passive element in test setups and communication infrastructure.

Feature Summary

• Fixed attenuation design providing consistent signal reduction without variable adjustment mechanisms
• Passivated stainless steel housing ensures mechanical robustness and corrosion resistance
• Bidirectional operation capability allows signal flow in either direction between connectors
• Precision 2.92mm interface maintains impedance matching and minimizes reflection losses

Applications

• Microwave test and measurement instrumentation signal conditioning
• Wireless communication system component isolation and level setting
• Radar system signal path attenuation and protection
• Satellite ground station equipment signal management

Procurement Notes

Verify the specific datasheet version corresponding to the PE7024-10 part number to confirm current electrical tolerances and mechanical dimensions. Ensure that the required operating frequency range does not exceed the 26.5 GHz limit specified for this model. Confirm that the expected power levels remain within the 2-watt rating to prevent thermal damage. Check for any updated compliance certifications or material declarations relevant to your procurement region before finalizing the order.

Selection Notes

Select the PE7024-10 when a precise 10 dB reduction is required at frequencies extending up to 26.5 GHz. Choose this model over lower-rated variants if the application demands higher power handling or superior frequency performance. Consider the 2.92mm connector type for compatibility with existing high-precision test fixtures. Evaluate the stainless steel construction against environmental factors such as humidity or chemical exposure to ensure long-term reliability in the intended deployment scenario.

Part Context

This component belongs to the Pasternack series of RF fixed attenuators, specifically engineered for microwave and millimeter-wave applications. The product line emphasizes high-performance interconnect solutions with standardized impedance characteristics. The PE7024-10 represents a standard value within this portfolio, offering a balance between attenuation precision and power handling capabilities. It complements other fixed attenuator models that provide different attenuation values or connector configurations for diverse system integration needs.

Replacement Considerations

Direct substitutes must match the 2.92mm male-to-female interface and 10 dB attenuation value. Verify that alternative components support the same 26.5 GHz frequency range and 2-watt power rating. Ensure mechanical dimensions and mounting requirements are compatible with existing assembly designs. Cross-reference manufacturer specifications to confirm equivalent VSWR and insertion loss performance metrics.
