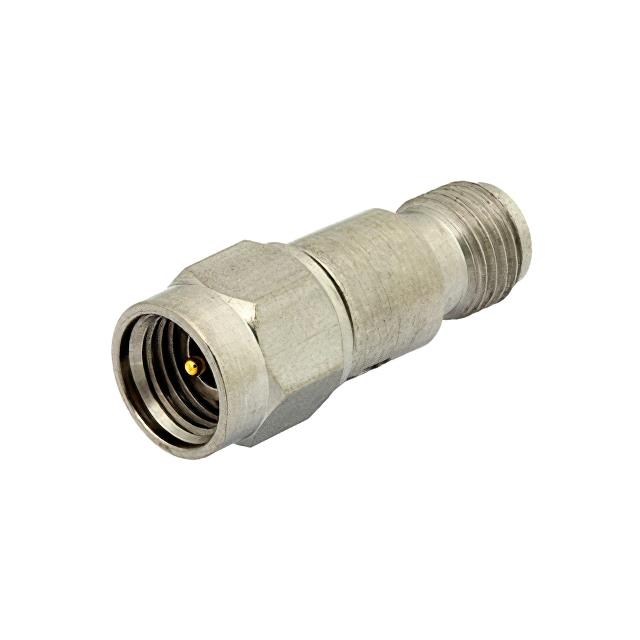

PE7024-2

Overview

The Pasternack PE7024-2 is a fixed RF attenuator designed for high-frequency applications up to 26.5 GHz. It features a 2 dB attenuation value and operates within a 50 Ohm impedance system. The component utilizes a 2.92mm male connector on one side and a 2.92mm female connector on the other, facilitating direct inline integration. It is rated for a maximum power handling of 2 Watts. The housing is constructed from passivated stainless steel, providing durability and shielding. This model belongs to the series of connectorized attenuators intended for precise signal level control in microwave circuits.

Feature Summary

• Fixed 2 dB attenuation value for consistent signal reduction
• Operational frequency range extending up to 26.5 GHz
• Passivated stainless steel body for environmental protection
• Mixed gender 2.92mm connector interface (Male to Female)

Applications

• Microwave test and measurement setups
• Signal conditioning in high-frequency communication systems
• RF circuit prototyping and development

Procurement Notes

Verify the specific datasheet version for the PE7024-2 to confirm current manufacturing status and detailed electrical tolerances. Ensure that the 2.92mm connector compatibility matches the existing system infrastructure. Check for any RoHS compliance documentation if required by project specifications. Confirm the power rating of 2 Watts aligns with the operational thermal requirements of the target application environment.

Selection Notes

Select this component when a precise 2 dB reduction is required at frequencies approaching 26.5 GHz. The mixed gender 2.92mm interface allows for direct connection between male and female ports without additional adapters. Consider the 2 Watt power rating to ensure it exceeds the maximum expected signal power in the line. The stainless steel construction offers robustness suitable for benchtop or permanent installation.

Part Context

This part is part of Pasternack's line of connectorized RF attenuators. It serves as a passive component for managing signal amplitude in microwave environments. The 2.92mm connector type ensures performance consistency with standard precision coaxial interfaces. It is distinct from variable attenuators by offering a single, fixed attenuation step.

Replacement Considerations

PE7024-10: Offers 10 dB attenuation with identical connector types and frequency range. PE7024-20: Provides 20 dB attenuation using the same 2.92mm interface and power ratings.
