PE7024-3

Overview

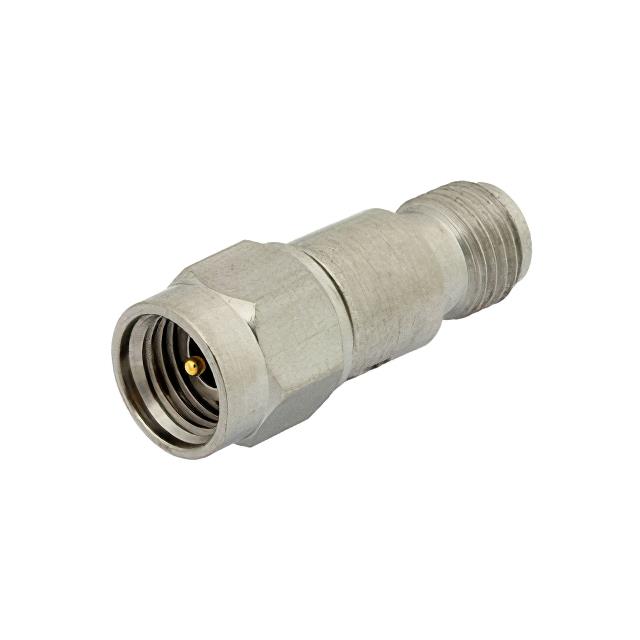

The Pasternack PE7024-3 is a fixed coaxial RF attenuator featuring 2.92mm male to 2.92mm female connectors. It provides a nominal attenuation of 3 dB with a tolerance of ±0.5 dB across a frequency range of DC to 26.5 GHz. The unit operates at a maximum power rating of 2 Watts (CW) and maintains a VSWR of less than 1.4:1. Constructed with a passivated stainless steel body, it ensures bidirectional signal handling within a 50 Ohm impedance system.

Feature Summary

• Bidirectional signal transmission capability
• Passivated stainless steel construction for durability
• Wideband operation extending to 26.5 GHz

Applications

• Precision instrumentation
• RF test and measurement setups
• Microwave circuit attenuation

Procurement Notes

Verify the specific connector gender configuration matches the design requirements, as 2.92mm interfaces are precise. Confirm that the 2 Watt continuous wave power rating aligns with the operational signal levels in the target application. Ensure environmental conditions remain within standard operating limits for the stainless steel housing material.

Selection Notes

Select this component when a compact, high-frequency fixed attenuation solution is required. The 2.92mm interface supports higher frequencies than standard SMA types. Consider the 3 dB value for specific signal level adjustments. Verify compatibility with existing 50 Ohm system infrastructure before integration into the RF chain.

Part Context

This model belongs to the Pasternack PE7024 series of RF fixed attenuators. The series utilizes 2.92mm connectors to support microwave applications up to 26.5 GHz. These components are designed for precision signal control in dense RF environments, offering consistent performance across the specified bandwidth.

Replacement Considerations

Direct substitutes include other Pasternack models in the PE7024 series with different attenuation values, such as PE7024-10 or PE7024-30. Cross-brand replacements must match the 2.92mm connector type and 26.5 GHz frequency limit to ensure mechanical and electrical compatibility.
