PE7025-40

$380.11

Description：40 dB Fixed Attenuator, BNC Male
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:7f5051acd522 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：40 dB Fixed Attenuator, BNC Male
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：40dB
Frequency Range：0 Hz ~ 2 GHz
Power (Watts)：10W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：BNC In-Line Module

Download product information

PE7025-40

Overview

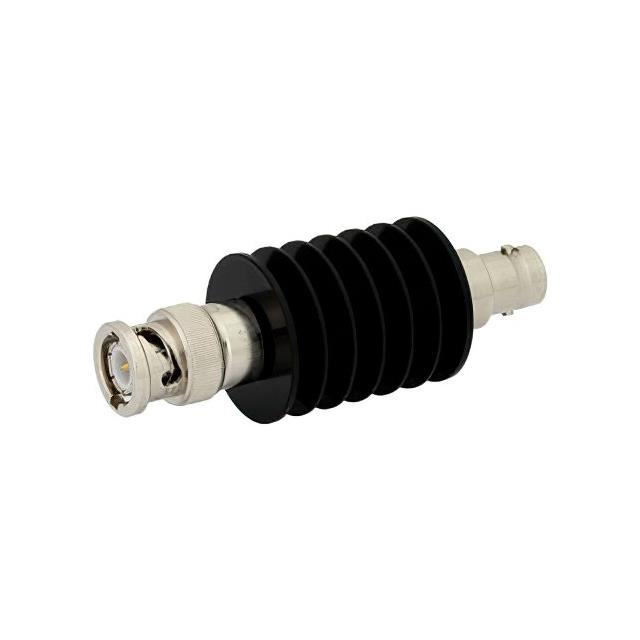

The Pasternack PE7025-40 is a fixed bidirectional attenuator featuring BNC male to BNC female connectors. It provides a nominal attenuation of 40 dB with an impedance of 50 Ohms. The device operates within a frequency range up to 2 GHz and is rated for a maximum input power of 10 Watts at the stated attenuation value. The unit utilizes a black anodized aluminum heatsink body for thermal management.

Feature Summary

Fixed bidirectional attenuation design
Black anodized aluminum heatsink body construction
BNC male to BNC female connector configuration

Applications

RF signal level reduction in test setups
Impedance matching between 50 Ohm components
Protection of sensitive receiver inputs

Procurement Notes

Verify the specific datasheet version for the PE7025-40 model to confirm exact VSWR and attenuation accuracy specifications, as these values can vary by manufacturing lot. Ensure that the operating environment remains within the thermal limits defined by the 10 Watt power rating at 40 dB attenuation. Confirm connector compatibility with existing BNC infrastructure before integration.

Selection Notes

Select this component when a precise 40 dB reduction is required in the 2 GHz bandwidth. The BNC interface suits lower-frequency applications compared to SMA or N-type alternatives. The aluminum heatsink body supports continuous operation at the rated power level without external cooling. Consider the physical dimensions if space constraints exist in the assembly.

Part Context

This part belongs to the Pasternack PE7025 series of fixed attenuators. The series offers various attenuation values while maintaining consistent BNC connectivity and 50 Ohm impedance. These components are designed for general RF and microwave applications requiring stable signal attenuation across the specified frequency range.

Replacement Considerations

Pasternack PE7025-30 and PE7025-50 offer similar form factors with different attenuation values. External manufacturers may provide equivalent BNC fixed attenuators, but verify impedance and power ratings match the original specification.
