PE7025-6

Overview

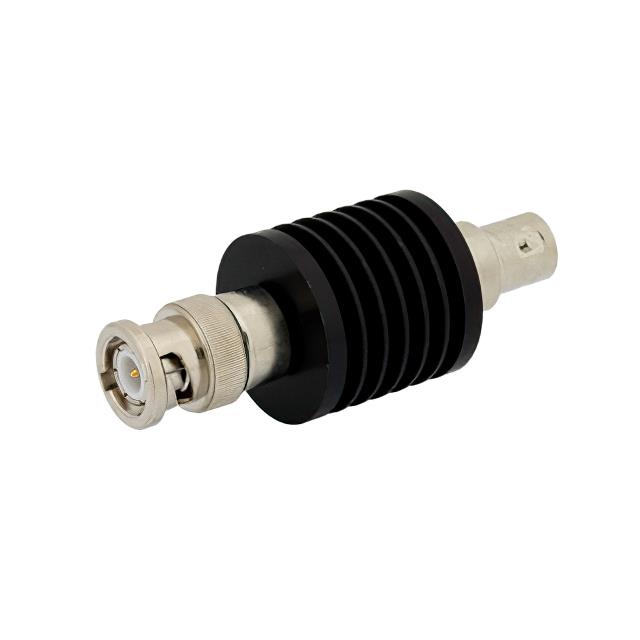

The Pasternack PE7025-6 is a fixed bidirectional RF attenuator designed for signal reduction in coaxial systems. It provides a precise attenuation value of 6 dB with an accuracy of ±0.6 dB across its operational bandwidth. The component features BNC male to BNC female connectors and maintains a system impedance of 50 Ohms. It is rated for a maximum input power of 10 Watts up to 2 GHz. The unit utilizes a black anodized aluminum heatsink body, ensuring thermal stability and durability during continuous operation within the specified frequency range.

Feature Summary

• Fixed bidirectional attenuation capability for consistent signal management
• Black anodized aluminum heatsink body for thermal dissipation
• BNC male to BNC female connector configuration for standard integration

Applications

• RF test and measurement setups requiring precise signal reduction
• Communication systems needing fixed signal level adjustment
• Laboratory environments for calibrating receiver sensitivity

Procurement Notes

Verify the specific model suffix against official Pasternack documentation to confirm the 6 dB attenuation value and BNC interface type. Ensure that the required 10 Watt power rating and 2 GHz frequency limit align with your system's operational parameters before procurement. Cross-reference the datasheet for mechanical dimensions and connector specifications to guarantee physical compatibility with existing infrastructure.

Selection Notes

Select this component when a fixed 6 dB reduction is required within a 50 Ohm system operating up to 2 GHz. Consider the BNC interface for ease of connection in standard laboratory or field applications. Evaluate the 10 Watt power handling capacity to ensure it meets the maximum signal levels present in the circuit. The aluminum heatsink design supports reliable performance in environments where thermal management is critical for long-term stability.

Part Context

The PE7025-6 belongs to Pasternack's line of fixed RF attenuators, which are engineered for precision and reliability in microwave applications. This series typically offers various attenuation values and connector types to suit different system requirements. As a fixed attenuator, it provides a constant signal loss without adjustable settings, making it suitable for applications where stable signal levels are mandatory.

Replacement Considerations

PE7025-2: Offers 2 dB attenuation with identical BNC connectors and power ratings. PE7025-3: Provides 3 dB attenuation with matching interface specifications. PE7025-10: Delivers 10 dB attenuation using the same BNC male-to-female configuration and 10 Watt power handling capacity.
