PE7026-10

Overview

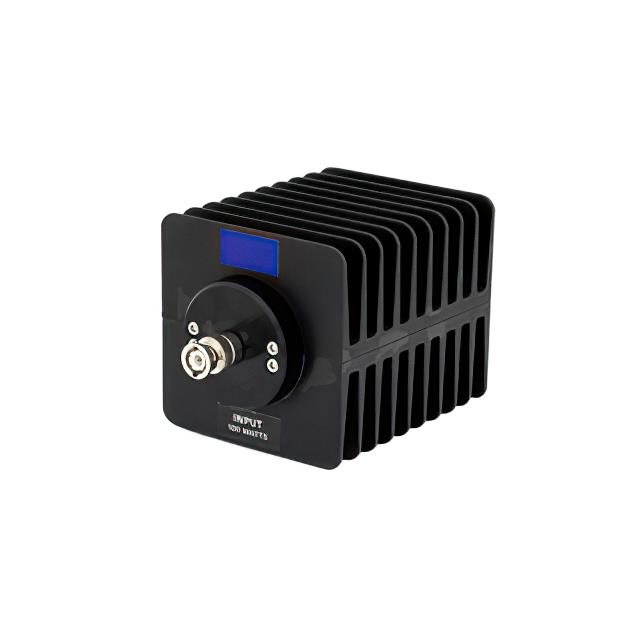

The Pasternack PE7026-10 is a fixed RF attenuator designed for in-line applications. It provides a nominal attenuation of 10 dB with a frequency range extending from DC to 1 GHz. The component features BNC male-to-BNC female connectors and maintains a 50 Ohm impedance. It is rated for a maximum power handling capacity of 100 Watts at the stated attenuation value, utilizing a black anodized aluminum heatsink body for thermal management.

Feature Summary

• Provides precise 10 dB signal reduction within the specified frequency band
• Supports high power handling up to 100 Watts for robust operation
• Features directional design with BNC male to BNC female interface
• Utilizes anodized aluminum construction for effective heat dissipation

Applications

• RF signal level control in test and measurement setups
• Power reduction in microwave transmission lines
• Impedance matching in 50 Ohm coaxial systems
• Signal conditioning for BNC-based instrumentation

Procurement Notes

Verify the specific connector gender configuration and power rating requirements against your system specifications before ordering. Confirm that the operating frequency does not exceed 1 GHz to ensure optimal performance. Check for any environmental constraints regarding the anodized aluminum finish. Ensure compatibility with existing BNC infrastructure for seamless integration into your RF chain without impedance mismatches.

Selection Notes

Select this model when a fixed 10 dB attenuation is required for signals up to 1 GHz. It is suitable for applications demanding high power handling capabilities of 100 Watts. Choose this component over variable attenuators if a constant attenuation value is sufficient. Ensure the BNC interface matches your existing cable assemblies and equipment ports for direct connection without additional adapters.

Part Context

This part belongs to Pasternack's line of fixed coaxial attenuators. It is engineered for reliability in RF environments requiring stable signal reduction. The product utilizes standard BNC connectors, making it compatible with a wide range of laboratory and industrial equipment. Its construction supports continuous wave power levels typical in broadcast and communication systems.

Replacement Considerations

PE7026-10 is a specific fixed attenuator model. No direct public substitute part numbers are confirmed in the provided documentation. Verify electrical parameters such as attenuation value, frequency range, and power rating when considering alternative components from other manufacturers to ensure functional equivalence.
