PE7026-3

Overview

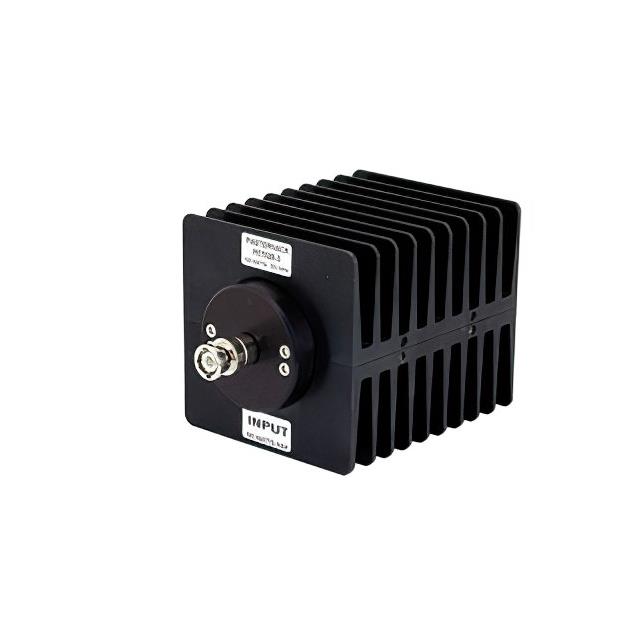

The Pasternack PE7026-3 is a 3 dB fixed RF attenuator designed for in-line applications. It features BNC male to BNC female connectors and operates from DC to 1 GHz. The device handles up to 100 Watts of power at the stated attenuation value. Constructed with directional black anodized aluminum housing, it ensures effective thermal management. This component provides precise signal reduction within its specified frequency range while maintaining impedance characteristics suitable for standard RF systems.

Feature Summary

• Provides fixed 3 dB attenuation for signal level control
• Supports high power handling up to 100 Watts
• Features directional design for improved performance
• Utilizes durable black anodized aluminum construction

Applications

• RF signal path attenuation
• Test and measurement equipment
• Communication system signal conditioning

Procurement Notes

Verify the exact part number PE7026-3 against official Pasternack documentation to confirm specifications. Ensure compatibility with your system's connector type and power requirements. Check for RoHS compliance status if required by your project standards. Confirm the operating frequency range meets your application needs before procurement.

Selection Notes

Select this attenuator when a fixed 3 dB reduction is required in a BNC-based RF circuit. Consider the 100 Watt power rating to ensure it exceeds your system's maximum power levels. Verify that the 1 GHz upper frequency limit covers your operational bandwidth. Ensure the directional design aligns with your signal flow requirements.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators. It is specifically engineered for reliable signal attenuation in coaxial systems. The BNC interface makes it compatible with common RF test and measurement setups. Its robust construction supports demanding industrial and commercial environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Pasternack directly for equivalent components or cross-reference options based on specific electrical and mechanical requirements.
