PE7026-40

Overview

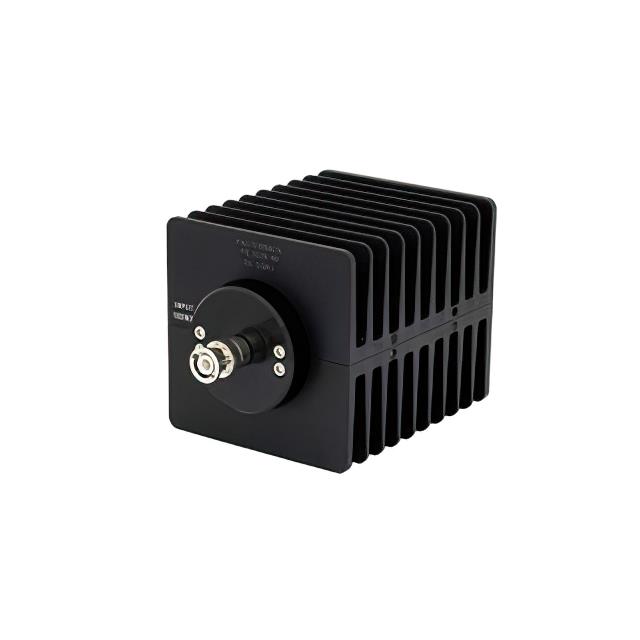

The Pasternack PE7026-40 is a fixed RF attenuator designed for in-line module applications. It provides a precise attenuation value of 40 dB across a frequency range of 0 Hz to 1 GHz. The component features a 50 Ohm impedance and utilizes BNC connectors for both input and output interfaces. It is rated to handle up to 100 Watts of power at the stated attenuation level. The unit is housed in an anodized body, ensuring durability for various RF testing and measurement environments.

Feature Summary

• Provides fixed 40 dB attenuation for signal reduction
• Supports high power handling up to 100 Watts
• Operates effectively from DC to 1 GHz frequency range
• Features durable anodized metal construction

Applications

• RF signal testing and measurement systems
• Microwave circuit attenuation requirements
• Laboratory equipment signal conditioning
• Communication system power level adjustment

Procurement Notes

Verify the specific connector type and impedance match with your existing infrastructure before integration. Confirm that the operational power levels do not exceed the 100 Watt rating to prevent component damage. Ensure the frequency range up to 1 GHz aligns with your system requirements. Check for any environmental constraints regarding the anodized finish. Cross-reference the datasheet for detailed mechanical dimensions.

Selection Notes

Select this model when a fixed, high-power attenuation solution is required within the 1 GHz bandwidth. The BNC interface offers compatibility with standard laboratory equipment. Consider the 40 dB value for significant signal reduction needs. Evaluate the physical size constraints against available mounting space. Compare with other Pasternack series for alternative impedance or connector options if necessary.

Part Context

This component belongs to the Pasternack line of RF attenuators, specifically designed for reliable performance in microwave applications. The PE7026 series typically includes various attenuation values and connector types. This particular model focuses on high-power handling capabilities, making it suitable for robust industrial and laboratory settings where signal integrity and power management are critical.
