PE7026-6

Overview

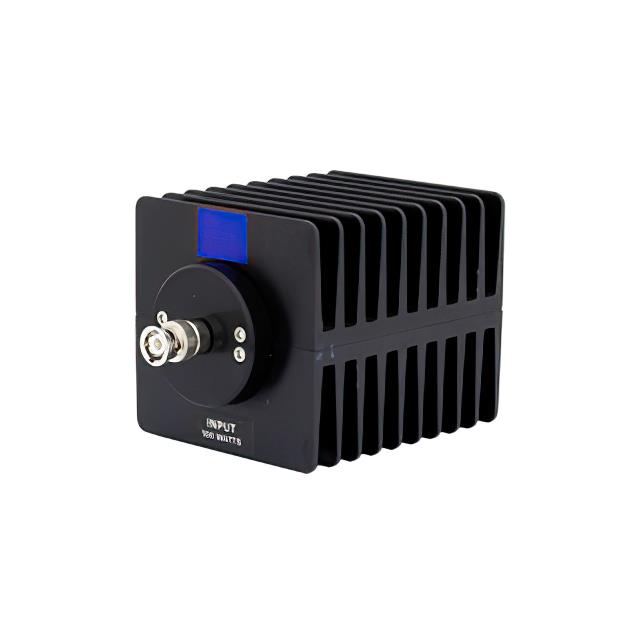

The Pasternack PE7026-6 is a fixed RF attenuator module designed for in-line applications. It provides an attenuation value of 6 dB across a frequency range from DC to 1 GHz. The component features BNC male connectors on both ends, facilitating straightforward integration into existing coaxial systems. It operates with a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 100 Watts. Constructed from black anodized aluminum, the unit ensures durability and effective thermal management during operation.

Feature Summary

• Provides precise 6 dB signal attenuation for consistent signal level control
• Supports high power handling up to 100 Watts for robust performance
• Features durable black anodized aluminum housing for environmental protection

Applications

• RF test and measurement setups requiring signal reduction
• Protecting sensitive receiver inputs from high-power signals
• Signal conditioning in wireless communication infrastructure

Procurement Notes

Verify that the required attenuation tolerance and frequency range align with system specifications before procurement. Confirm that the 100 Watt power rating exceeds the maximum expected signal power in the application path. Ensure connector compatibility with existing BNC interfaces. Check for RoHS compliance requirements if applicable to the manufacturing environment. Review datasheet details for specific VSWR and return loss values to ensure signal integrity.

Selection Notes

Select this model when a fixed 6 dB reduction is necessary within the 0 Hz to 1 GHz bandwidth. Consider the 50 Ohm impedance match for standard RF environments. Evaluate the 100 Watt power handling against peak and average power levels. Compare physical dimensions and weight against space constraints. Assess the need for BNC connectivity versus other interface types.

Part Context

This component belongs to Pasternack's line of RF attenuators, specifically designed as in-line modules. It serves as a passive device to reduce signal amplitude without introducing significant distortion. The product is part of a broader portfolio offering various attenuation values and connector types for diverse RF engineering needs.

Replacement Considerations

Direct substitutes must maintain 6 dB attenuation, 50 Ohm impedance, and BNC male-to-male configuration. Verify frequency coverage meets or exceeds 1 GHz. Ensure power handling capabilities are comparable to prevent thermal failure. Check mechanical fitment for equivalent form factor.
