PE7029-10

Overview

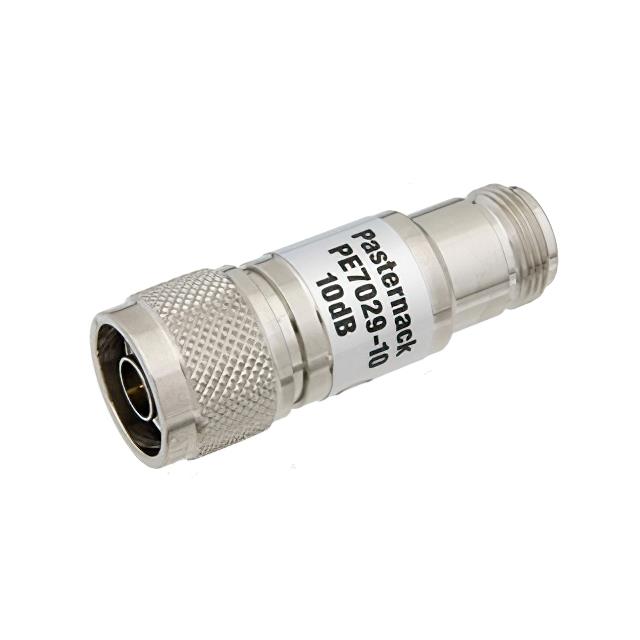

The Pasternack PE7029-10 is a fixed coaxial attenuator designed for RF signal management. It provides a precise attenuation value of 10 dB with a characteristic impedance of 75 Ohms. The device utilizes N-type connectors, featuring a male interface on one side and a female interface on the other. It is rated to handle up to 1 Watt of power across a frequency range extending from 0 Hz to 1 GHz. The construction features a brass body with nickel plating, ensuring durability and consistent performance in standard RF applications.

Feature Summary

• Provides fixed 10 dB attenuation for signal level control
• Features 75 Ohm impedance matching for video and cable systems
• Utilizes robust N-type connector interfaces for secure attachment

Applications

• RF signal distribution networks requiring specific loss values
• Video transmission systems utilizing 75 Ohm infrastructure
• Test and measurement setups involving low-frequency RF signals

Procurement Notes

Verify that the application environment strictly adheres to the 75 Ohm impedance requirement, as this component is not compatible with standard 50 Ohm systems. Confirm that the operating frequency does not exceed 1 GHz and that the signal power remains within the 1 Watt rating to prevent damage. Ensure the brass nickel body material meets environmental specifications for the installation site.

Selection Notes

Select this model when a fixed 10 dB loss is required in a 75 Ohm system. It is suitable for applications where variable attenuation is unnecessary. Compare against other Pasternack models if higher power handling or different frequency ranges are needed. Ensure connector gender configuration (Male to Female) aligns with the existing cabling infrastructure.

Part Context

This component belongs to the Pasternack RF Attenuators category, specifically within the fixed attenuator sub-series. It serves as a passive interconnect device used to reduce signal amplitude without distortion. Unlike variable attenuators, it offers a static attenuation value determined by its internal resistive network. It is distinct from surge protectors and adapters found in the manufacturer's broader portfolio.

Replacement Considerations

Direct substitutes must maintain 10 dB attenuation, 75 Ohm impedance, and N-type connectors. Verify that any alternative part supports the same 1 Watt power rating and 1 GHz frequency limit. Check for identical connector gender orientation to ensure physical compatibility.
