PE7030-10

$348.29

Description：10 dB Fixed Attenuator, TNC Male
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:12c97d1450e5 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10 dB Fixed Attenuator, TNC Male
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：10dB
Frequency Range：0 Hz ~ 18 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：TNC In-Line Module

Download product information

PE7030-10

Overview

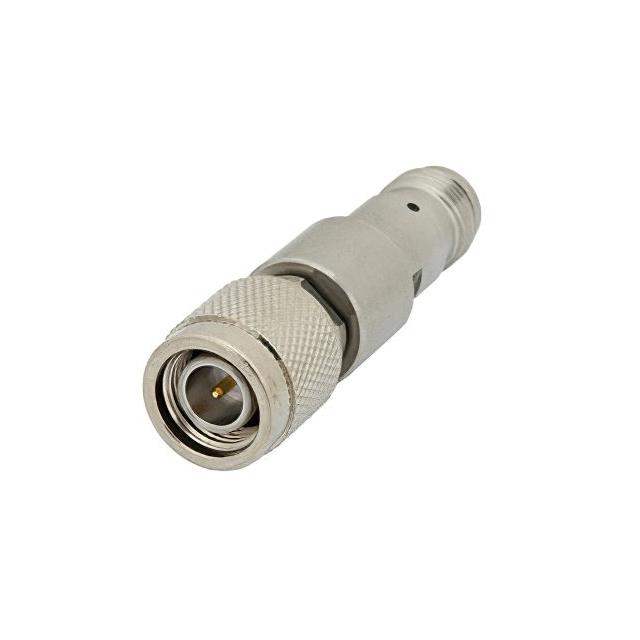

The Pasternack PE7030-10 is a 10 dB fixed attenuator featuring TNC male to TNC female connectors. It operates up to 18 GHz with a 50 Ohm impedance and a 10 Watt power rating. The unit utilizes a passivated stainless steel body for durability.

Feature Summary

Fixed 10 dB attenuation value
TNC connector interface
Passivated stainless steel construction

Applications

RF signal level reduction
Impedance matching in test setups
Signal conditioning in microwave systems

Procurement Notes

Verify the specific datasheet version for the PE7030-10 model to confirm exact VSWR and frequency response curves. Ensure the TNC connector gender and passivation specifications align with system requirements before integration.

Selection Notes

Select this component when a precise 10 dB loss is required at frequencies up to 18 GHz. The TNC interface suits applications needing robust mechanical connections, while the stainless steel body provides environmental resistance compared to brass alternatives.

Part Context

This part belongs to the Pasternack PE7030 series of TNC fixed attenuators. It shares the same form factor and connector type as other values in the series, such as the PE7030-20, differing primarily in attenuation magnitude.

Replacement Considerations

Compatible substitutes include the PE7030-10 from other manufacturers offering identical TNC interfaces and 10 dB attenuation within the 18 GHz range.
