PE7034-2

Overview

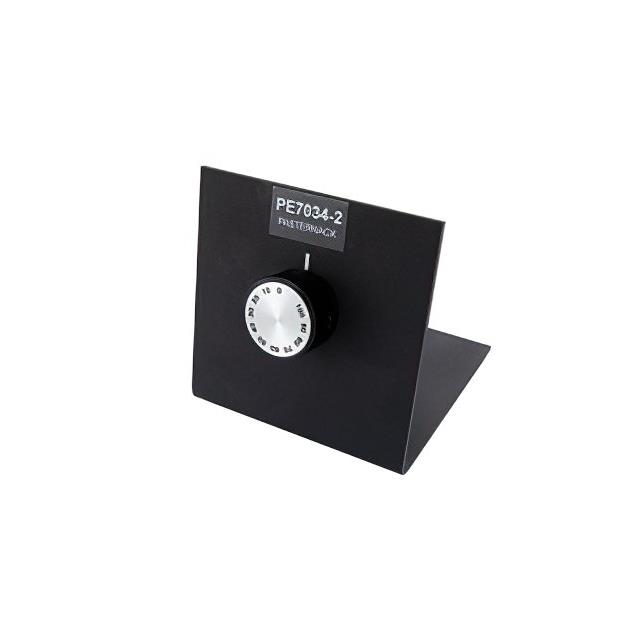

The Pasternack PE7034-2 is a rotary step attenuator featuring BNC female connectors. It provides an attenuation range from 0 to 100 dB with 10 dB step sizes. The device is rated for 1 Watt power handling up to 1 GHz frequency.

Feature Summary

• Rotary mechanical adjustment for precise attenuation steps
• BNC female connector interface for standard RF integration

Applications

• RF signal level control in test and measurement setups
• Attenuation calibration in communication systems
• Signal path protection in high-power RF circuits

Procurement Notes

Verify the specific datasheet revision and connector gender compatibility before ordering. Confirm that the 1 Watt power rating and 1 GHz frequency limit meet your system requirements. Check for any regional distribution restrictions or lead time variations associated with this component.

Selection Notes

Select this model when fixed 10 dB step resolution is required rather than continuous variable attenuation. Ensure the BNC interface matches existing infrastructure. Consider thermal management if operating near the 1 Watt limit, as power dissipation increases with attenuation settings.

Part Context

This component belongs to the Pasternack rotary step attenuator series, designed for discrete attenuation levels. It serves as a manual alternative to electronic variable attenuators, offering mechanical reliability for static or infrequently adjusted RF paths.

Replacement Considerations

PE7034-3 offers similar functionality but with different impedance and step characteristics. Verify connector type and power ratings when substituting.
