PE7034-6

Overview

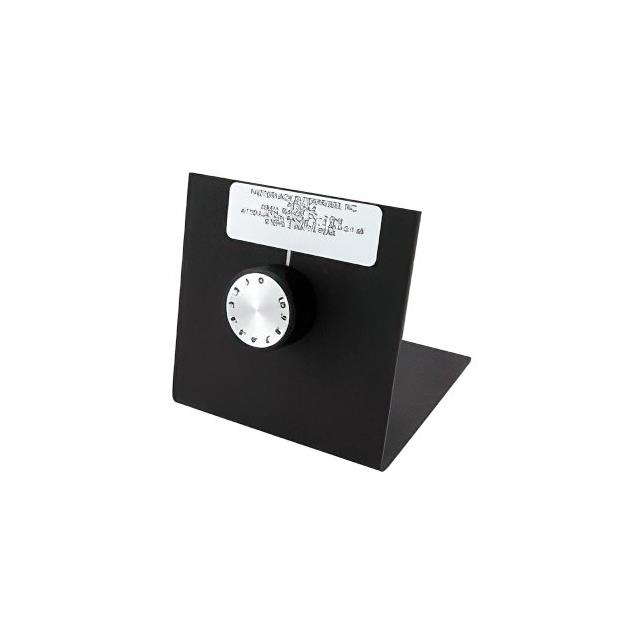

The Pasternack PE7034-6 is a rotary step attenuator featuring BNC female connectors. It provides an attenuation range from 0 dB to 1 dB with 0.1 dB step sizes. The device operates within a frequency range of 0 Hz to 2 GHz and is rated for 2 Watts power handling.

Feature Summary

• Rotary mechanical adjustment for precise attenuation control
• BNC female-to-female interface configuration
• Step resolution of 0.1 dB across the operational range

Applications

• RF signal level calibration
• Test and measurement equipment integration
• Signal path loss simulation

Procurement Notes

Verify the specific datasheet version for the PE7034-6 model to confirm current manufacturing status and compliance certifications. Ensure that the required power rating of 2 Watts and frequency coverage up to 2 GHz align with the system design requirements before finalizing procurement decisions.

Selection Notes

Select this component when a compact, low-loss attenuation solution is required between 0 and 1 dB. The BNC interface ensures compatibility with standard RF test setups. Consider the 0.1 dB step size for applications requiring fine-tuned signal adjustments within the specified frequency band.

Part Context

This part belongs to the Pasternack rotary step attenuator series, designed for precision RF applications. It serves as a specialized interconnect component for managing signal strength in electronic testing environments, distinct from fixed attenuators or variable coaxial cables.

Replacement Considerations

No public substitute part numbers are documented.
