PE7036-1

Overview

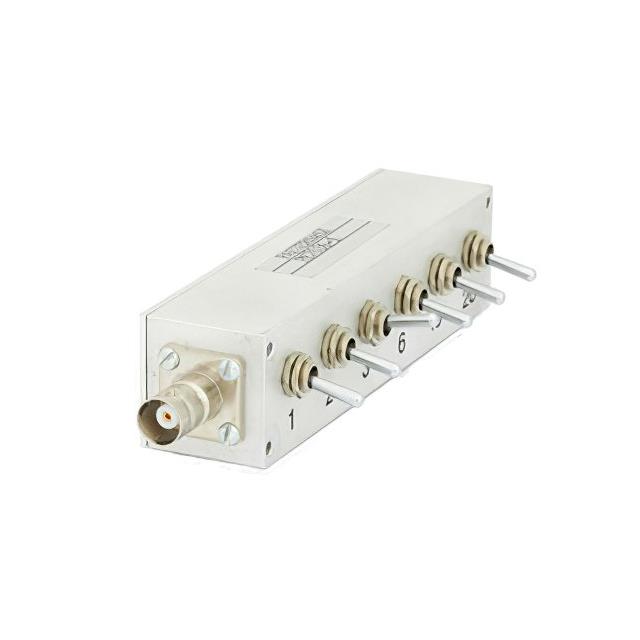

The Pasternack PE7036-1 is a manual toggle step attenuator featuring BNC female connectors on both input and output ports. It provides an attenuation range from 0 to 42 dB with a resolution of 0.5 dB per step. The component is rated for a power handling capacity of 1 Watt and operates effectively up to a frequency of 1 GHz.

Feature Summary

• Manual toggle switch mechanism for precise attenuation adjustment
• BNC female-to-female interface configuration
• High-resolution 0.5 dB step increments across the full range

Applications

• RF signal level control in test and measurement setups
• Attenuation calibration for instrumentation equipment
• Signal conditioning in telecommunications testing environments

Procurement Notes

Verify the specific datasheet version to confirm impedance and connector gender details. Ensure the application environment does not exceed the 1 Watt power rating or 1 GHz frequency limit. Confirm RoHS compliance status if required by project specifications before finalizing procurement.

Selection Notes

Select this model when precise, low-step attenuation adjustments are required within the BNC connector ecosystem. It is suitable for applications needing fine-grained control over signal strength up to 1 GHz. Consider physical size and mounting requirements relative to the test setup constraints.

Part Context

This component belongs to Pasternack's series of RF step attenuators designed for precision signal management. It utilizes a mechanical toggle design to achieve discrete attenuation levels, offering a reliable alternative to variable analog attenuators for fixed-step applications.

Replacement Considerations

Check for compatible BNC female attenuators with similar 0.5 dB step resolution and 1W power ratings. Verify that any substitute maintains the same DC to 1 GHz operational frequency range and physical form factor for direct interchangeability.
