PE7039-6

Overview

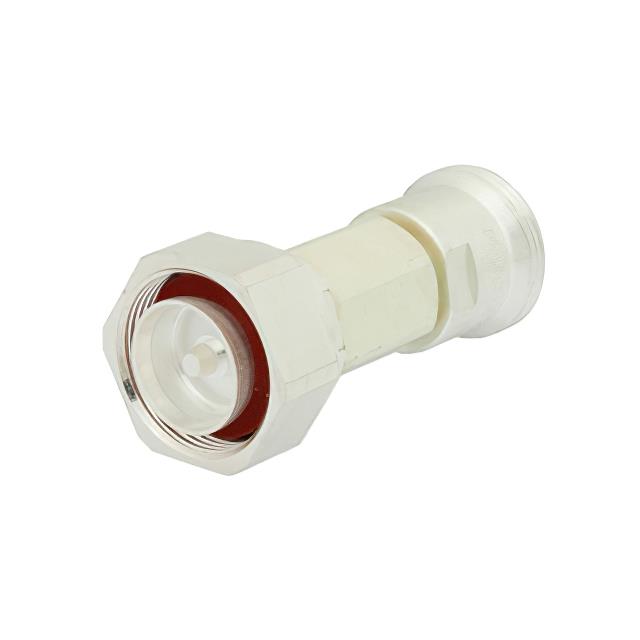

The PE7039-6 is a fixed attenuator manufactured by Pasternack, featuring a 7/16 DIN male to 7/16 DIN female interface. It provides an attenuation value of 6 dB with a brass tri-metal body construction. The component is rated for 5 watts of power handling up to 7.5 GHz frequency range.

Feature Summary

• Fixed attenuation performance
• Brass tri-metal body construction
• 7/16 DIN connector interface

Applications

• RF signal level reduction
• Impedance matching in RF systems
• Test and measurement setups

Procurement Notes

Verify the specific datasheet version for the PE7039-6 to confirm the exact power rating and frequency limits. Ensure the 7/16 DIN connector compatibility matches your system requirements. Check for any environmental specifications if used in harsh conditions.

Selection Notes

Select this model when a precise 6 dB attenuation is required at 7/16 DIN interfaces. Consider the 5-watt power rating and 7.5 GHz frequency limit for suitability. The brass tri-metal body offers durability for standard RF applications.

Part Context

This part belongs to Pasternack's series of fixed attenuators designed for coaxial RF applications. It utilizes the robust 7/16 DIN connector type, known for high power handling and low loss characteristics in microwave frequencies.

Replacement Considerations

Compatible substitutes include other 6 dB fixed attenuators with 7/16 DIN male-to-female interfaces. Ensure replacement parts match the 5-watt power rating and 7.5 GHz frequency specification. Brass tri-metal body variants are preferred for similar durability.
