PE7040-10

$104.82

Description：10 dB Fixed Attenuator, 7/16 DIN
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:bd79073b23bb Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10 dB Fixed Attenuator, 7/16 DIN
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：10dB
Frequency Range：0 Hz ~ 7.5 GHz
Power (Watts)：10W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：HEX In-Line Module

Download product information

PE7040-10

Overview

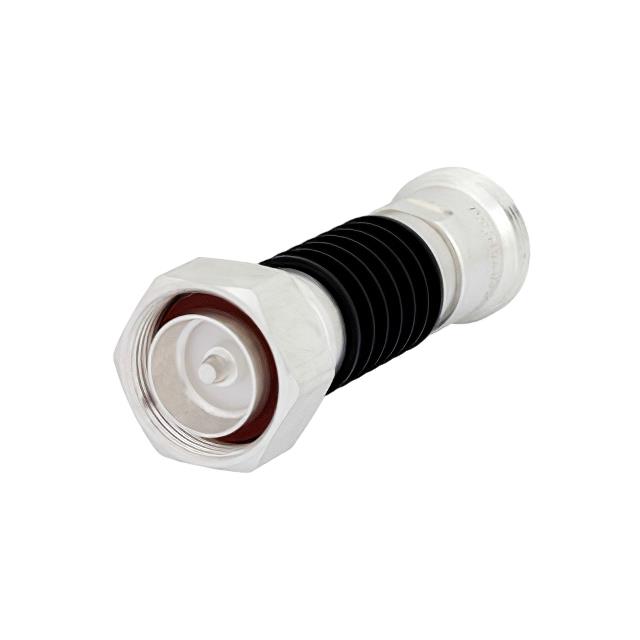

The PE7040-10 is a fixed attenuator manufactured by Pasternack. It features 7/16 DIN male to 7/16 DIN female connectors. The device provides a nominal attenuation of 10 dB. It operates from DC up to 7.5 GHz. The unit is rated for 10 Watts of power handling. The construction ensures reliable performance in RF applications requiring precise signal reduction within the specified frequency and power limits.

Feature Summary

Provides fixed 10 dB attenuation
Operates up to 7.5 GHz
Rated for 10 Watts power handling

Applications

RF signal level adjustment
Test and measurement setups
Microwave system integration

Procurement Notes

Verify the exact part number PE7040-10 against official Pasternack documentation to confirm specifications. Ensure compatibility with 7/16 DIN connector interfaces. Check power rating requirements against application needs. Confirm frequency range suitability for the intended operational bandwidth. Review datasheet details for mechanical dimensions and mounting requirements prior to procurement.

Selection Notes

Select this component when a fixed 10 dB attenuation is required in 7/16 DIN systems. Consider the 10 Watt power rating for high-power applications. Verify the 7.5 GHz upper frequency limit meets system requirements. Compare with other Pasternack attenuators if different attenuation values or connector types are needed. Ensure environmental conditions align with component specifications.

Part Context

This component belongs to Pasternack's RF and microwave product line. It is designed for use in systems requiring precise signal attenuation. The 7/16 DIN interface is common in telecommunications and broadcast infrastructure. Fixed attenuators like this model provide stable performance without variable adjustment capabilities.

Replacement Considerations

Check for equivalent models with identical 10 dB attenuation and 7/16 DIN connectors. Verify power handling and frequency range match original requirements. Consult Pasternack documentation for direct substitutes or updated series replacements.
