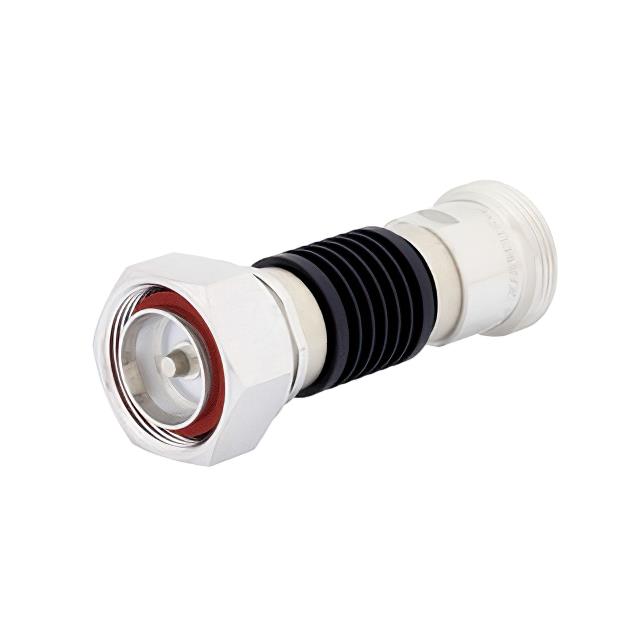

PE7040-6

$89.04

Description：6 dB Fixed Attenuator, 7/16 DIN
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:bc2deb35d184 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：6 dB Fixed Attenuator, 7/16 DIN
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：6dB
Frequency Range：0 Hz ~ 7.5 GHz
Power (Watts)：10W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：HEX In-Line Module

Download product information

PE7040-6

Overview

The Pasternack PE7040-6 is a fixed attenuator designed for radio frequency applications. It provides a precise attenuation value of 6 dB across a frequency range extending from DC to 7.5 GHz. The component supports a maximum power handling capacity of 10 Watts, ensuring reliable operation in high-power signal environments. It utilizes N-type connectors for secure interconnection within RF systems.

Feature Summary

Provides consistent signal reduction with a fixed 6 dB attenuation level
Operates effectively over a wide bandwidth from DC to 7.5 GHz
Supports high power levels up to 10 Watts for robust performance

Applications

RF signal conditioning and power management
Test and measurement equipment calibration
Microwave system impedance matching and isolation

Procurement Notes

Verify the specific connector gender and interface type required for your application before ordering. Confirm that the 10 Watt power rating aligns with your system's peak power requirements. Ensure the 7.5 GHz frequency limit covers your operational bandwidth. Check for any environmental specifications if the device will be used in extreme conditions.

Selection Notes

Select this model when a fixed 6 dB reduction is necessary without variable adjustment. Consider the N-type connector compatibility with existing cabling infrastructure. Evaluate the 10 Watt power handling against potential surge conditions. Compare with other fixed attenuators if different attenuation values or frequency ranges are needed.

Part Context

This component belongs to the Pasternack fixed attenuator series, which offers various attenuation values and frequency ranges. It is part of a broader portfolio of RF interconnect solutions designed for precision and reliability in microwave and radio frequency circuits.

Replacement Considerations

Direct substitutes include other 6 dB fixed attenuators from Pasternack with similar frequency and power ratings. Verify connector type compatibility when considering alternatives from other manufacturers.
