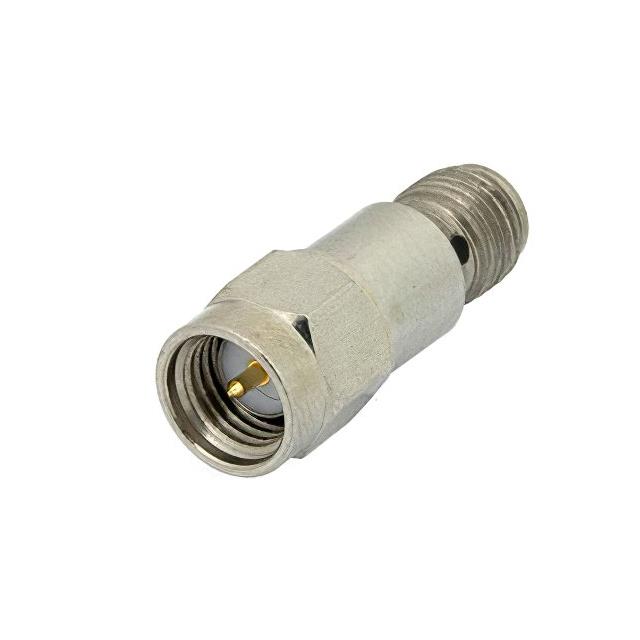

PE7045-10

$152.04

Description：10 dB Fixed Attenuator, SMA Male
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:b1777bd3bd03 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10 dB Fixed Attenuator, SMA Male
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：10dB
Frequency Range：0 Hz ~ 12.4 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：SMA In-Line Module

Download product information

PE7045-10

Overview

The PE7045-10 is a fixed attenuator manufactured by Pasternack Enterprises, designed for RF signal management. It features SMA male to SMA female connectors and utilizes a passivated stainless steel body for durability. The component provides a nominal attenuation of 10 dB with a frequency range extending up to 12.4 GHz. It supports a maximum operating temperature of +125°C, ensuring reliable performance in demanding environments.

Feature Summary

Fixed bidirectional attenuation design
Passivated stainless steel construction
SMA connector interface

Applications

RF test and measurement setups
Signal level reduction in communication systems
Impedance matching networks

Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturer documentation may update technical specifications over time. Confirm that the SMA connector gender and passivation treatment align with system requirements. Cross-reference the 12.4 GHz frequency limit and 10 dB attenuation value against current project constraints to ensure compatibility.

Selection Notes

Select this component when a precise 10 dB loss is required within an SMA-based infrastructure. Ensure the application environment does not exceed the +125°C thermal rating. Consider the stainless steel body material for corrosion resistance compared to aluminum alternatives. Validate that the 12.4 GHz upper frequency limit meets the operational bandwidth needs.

Part Context

This part belongs to the Pasternack attenuators category, specifically within the connectorized attenuator segment. It serves as a passive component for controlling signal amplitude in coaxial circuits. The product line focuses on providing stable attenuation characteristics across defined microwave frequency ranges using standard connector interfaces.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact electrical tolerances and connector specifications before considering alternative manufacturers.
