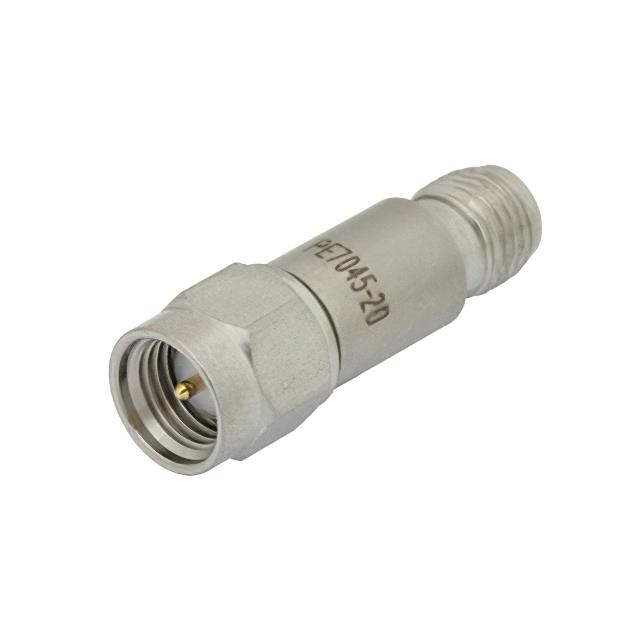

PE7045-20

$159.11

Description：20 DB FIXED ATTENUATOR, SMA MALE
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:2565a32831ae Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：20 DB FIXED ATTENUATOR, SMA MALE
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：20dB
Frequency Range：0 Hz ~ 12.4 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：SMA In-Line Module

Download product information

PE7045-20

Overview

The Pasternack PE7045-20 is a fixed RF attenuator providing 20 dB attenuation. It operates from DC to 12.4 GHz with a maximum power rating of 2 Watts. The component features SMA male to SMA female connectors and utilizes a passivated stainless steel body for durability.

Feature Summary

Provides precise 20 dB signal reduction
Operates up to 12.4 GHz frequency range
Constructed with passivated stainless steel housing

Applications

RF signal level adjustment in test setups
Impedance matching in microwave circuits
Signal attenuation in communication systems

Procurement Notes

Verify current availability status as the part is listed as obsolete. Confirm parametric equivalents if direct replacement is required. Ensure connector types and power ratings match system requirements before procurement.

Selection Notes

Select this component for applications requiring fixed 20 dB attenuation within the 12.4 GHz bandwidth. Consider the SMA interface compatibility and 2W power handling capacity. Evaluate alternative models if new production volume is needed due to obsolescence.

Part Context

This model belongs to the PE7045 series of fixed attenuators from Pasternack. The series offers various attenuation values with consistent SMA connectivity and stainless steel construction, designed for reliable performance in RF environments up to 12.4 GHz.

Replacement Considerations

The PE7045-20 is obsolete. Parametric equivalents are available from Molex (Part Number: 0732870131). Verify that substitute components meet the 20 dB attenuation, 12.4 GHz frequency, and 2W power specifications.
