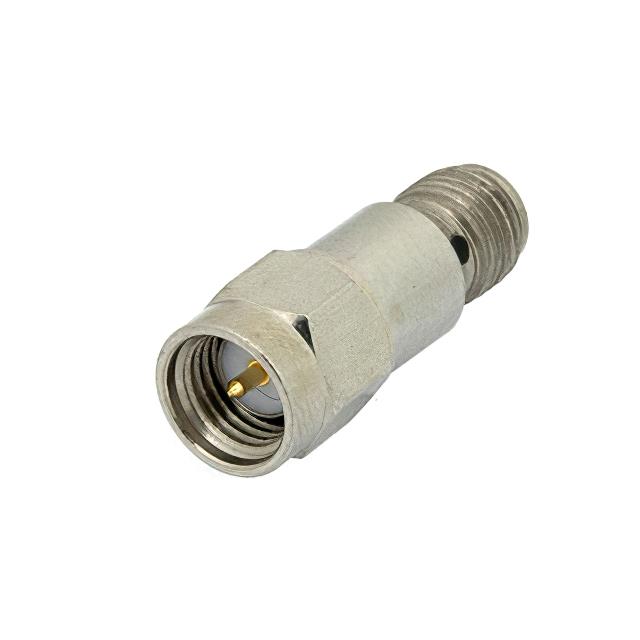

PE7045-4

$20.84

Description：4 dB Fixed Attenuator, SMA Male
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:c8f4a5e48f3c Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：4 dB Fixed Attenuator, SMA Male
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：4dB
Frequency Range：0 Hz ~ 12.4 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：SMA In-Line Module

Download product information

PE7045-4

Overview

The Pasternack PE7045-4 is a fixed attenuator designed for RF applications, providing an attenuation value of 4 dB. It features SMA male to SMA female connectors and operates up to a maximum frequency of 12.4 GHz. The unit is rated for 2 Watts power handling and utilizes a passivated stainless steel body. It supports a maximum operating temperature of +125 C.

Feature Summary

Provides precise 4 dB signal attenuation
Features SMA male to SMA female interface
Constructed with passivated stainless steel housing

Applications

RF signal level reduction in test setups
Impedance matching in microwave circuits
Signal conditioning in communication systems

Procurement Notes

Verify the specific datasheet version for the PE7045-4 model to confirm current manufacturing status and compliance details. Ensure compatibility with system requirements regarding frequency range and power handling before integration. Cross-reference connector types to guarantee proper mating with existing infrastructure components.

Selection Notes

Select this component when a fixed 4 dB attenuation is required within the 12.4 GHz bandwidth. The SMA interface suits standard laboratory and field applications. Consider the 2 Watt power rating and thermal limits for high-power environments. Verify environmental specifications if operation exceeds standard temperature ranges.

Part Context

This part belongs to the Pasternack series of connectorized attenuators. It is engineered for reliable performance in RF and microwave frequencies. The design emphasizes durability through its metal construction. It serves as a passive component for managing signal strength in electronic test and measurement equipment.

Replacement Considerations

Direct substitutes include other 4 dB fixed attenuators with SMA male-to-female interfaces from Pasternack or compatible manufacturers. Ensure replacement parts match the 12.4 GHz frequency limit and 2 Watt power rating. Verify physical dimensions and connector tolerances for seamless integration.
