PE7045-7

Overview

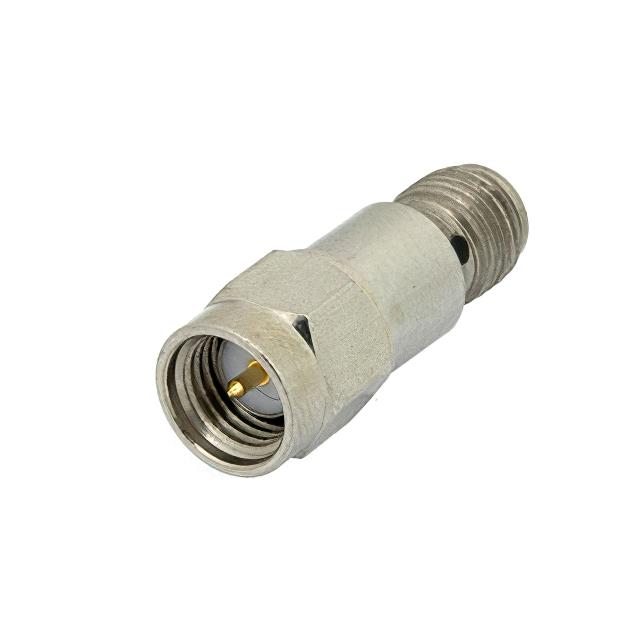

The PE7045-7 is a fixed attenuator from Pasternack, rated at 7 dB with a 50 Ohm impedance. It features SMA male to SMA female connectors and a passivated stainless steel body. The device supports frequencies up to 12.4 GHz and handles power ratings of 2 Watts.

Feature Summary

• Fixed attenuation value of 7 dB
• SMA male to SMA female interface
• Passivated stainless steel construction

Applications

• RF signal level control
• Test and measurement setups
• Impedance matching circuits

Procurement Notes

Verify the specific datasheet for the PE7045-7 model to confirm current RoHS compliance status and detailed mechanical dimensions. Ensure that the SMA connector gender and passivation specifications align with your system requirements before finalizing procurement orders.

Selection Notes

Select this component when a precise 7 dB reduction is required within the 12.4 GHz frequency range. The stainless steel body offers durability suitable for industrial environments. Confirm that the 2 Watt power rating meets the maximum signal levels in your application path.

Part Context

This part belongs to Pasternack's series of connectorized attenuators designed for RF interconnect applications. It provides a standardized solution for signal attenuation using common SMA interfaces, ensuring compatibility with various test equipment and RF modules operating at microwave frequencies.

Replacement Considerations

Check for other models in the PE7045 series or similar fixed attenuators with identical 7 dB attenuation and SMA interfaces. Verify that substitute parts maintain the same 12.4 GHz frequency limit and 2 Watt power handling capability to ensure functional equivalence.
