PE7046-10

Overview

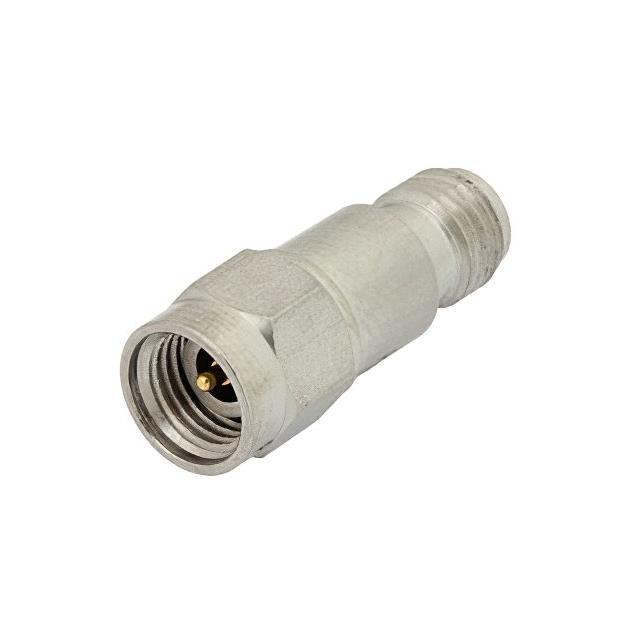

The PE7046-10 is a fixed attenuator manufactured by Pasternack. It provides 10 dB attenuation with an operating frequency range of DC to 40 GHz. The device features a 50 Ohm impedance and utilizes 2.92mm male-to-female connectors. It is housed in a passivated stainless steel body and is rated for 0.5 Watts power handling up to 40 GHz.

Feature Summary

• Passivated stainless steel construction
• Wideband operation from DC to 40 GHz
• Precise 10 dB attenuation value

Applications

• RF test and measurement systems
• Signal conditioning in high-frequency circuits
• Attenuation in microwave communication links

Procurement Notes

Verify the specific connector gender configuration (male-to-female) against system requirements. Confirm that the 0.5 Watt power rating at 40 GHz meets operational thermal limits. Ensure compatibility with 2.92mm interface standards. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when precise attenuation is needed across a broad bandwidth extending to 40 GHz. The 2.92mm interface ensures low VSWR performance. Consider the 0.5 Watt power limit for signal levels. The stainless steel body offers durability for laboratory environments.

Part Context

This part belongs to Pasternack's fixed attenuator series designed for high-frequency applications. It serves as a passive RF component used to reduce signal amplitude without distortion. The 2.92mm connector type supports operations well into the millimeter-wave spectrum, distinguishing it from standard SMA or N-type counterparts.

Replacement Considerations

PE7046-10

FAQ

What is the maximum power rating of the PE7046-10?

The PE7046-10 is rated for 0.5 Watts up to 40 GHz.

What connector types does this attenuator use?

It uses 2.92mm male to 2.92mm female connectors.
