PE7046-20

Overview

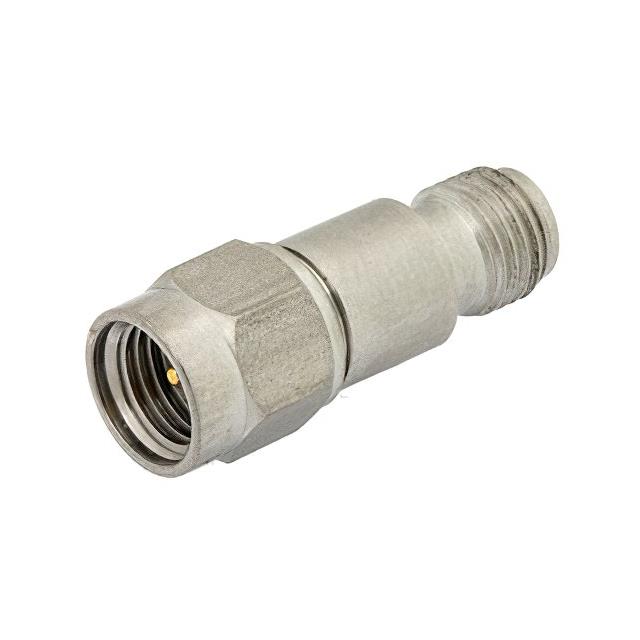

The Pasternack PE7046-20 is a fixed attenuator designed for high-frequency microwave applications. It provides a precise attenuation value of 20 dB within a frequency range extending up to 40 GHz. The component utilizes a 2.92mm connector interface, featuring a male-to-female configuration to ensure compatibility with standard RF test and measurement setups. Constructed with a钝化 stainless steel body, it offers durability and signal integrity in demanding environments. The unit is rated for a maximum power handling capacity of 0.5 Watts at the stated attenuation level, making it suitable for low-power signal conditioning tasks.

Feature Summary

• Provides stable 20 dB signal attenuation across a wide bandwidth up to 40 GHz
• Features a robust 2.92mm gendered connector interface for secure mating
• Utilizes a passivated stainless steel housing for enhanced environmental resistance

Applications

• RF signal level reduction in test and measurement equipment
• Impedance matching and isolation in microwave circuit designs
• Signal conditioning for high-frequency communication systems

Procurement Notes

Verify the specific connector gender configuration (male-to-female) against your system requirements before ordering. Confirm that the 0.5 Watt power rating aligns with your operational signal levels to prevent damage. Ensure the 40 GHz frequency limit meets your application's spectral needs. Check availability status as this item may not be normally stocked.

Selection Notes

Select this model when a precise 20 dB reduction is required at frequencies approaching 40 GHz. The 2.92mm interface ensures minimal reflection and high performance compared to lower-frequency connectors. Consider the 0.5 Watt power limit carefully; if higher power handling is needed, a different attenuator series must be chosen. The stainless steel construction supports use in rugged or outdoor environments where corrosion resistance is beneficial.

Part Context

This component belongs to Pasternack’s line of precision microwave attenuators. These devices are essential for controlling signal strength in RF systems without introducing significant distortion. The PE7046 series specifically targets high-frequency applications requiring reliable attenuation in compact coaxial formats. It complements other passive components like adapters and cables in complete RF solution architectures.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. When replacing, ensure the new component matches the 2.92mm interface, 20 dB attenuation value, 40 GHz frequency range, and 0.5 Watt power rating exactly.
