PE7046-6

Overview

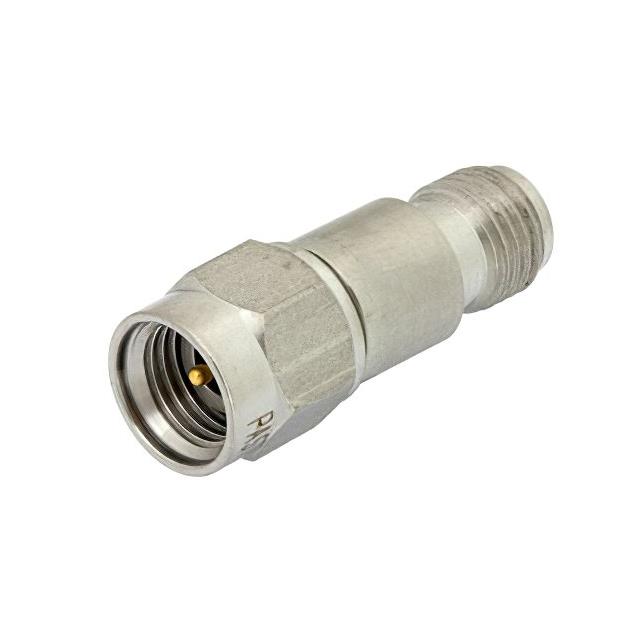

The PE7046-6 is a fixed attenuator manufactured by Pasternack. It features a 2.92mm male to female connector interface and provides an attenuation value of 6 dB. The device operates within a frequency range of DC to 40 GHz and has a nominal impedance of 50 Ohms. It is rated for a maximum power handling capacity of 500 mW. The unit utilizes a passivated stainless steel body construction.

Feature Summary

• Provides precise 6 dB signal attenuation for RF applications
• Supports high-frequency operation up to 40 GHz
• Features robust passivated stainless steel housing

Applications

• RF test and measurement instrumentation
• Signal conditioning in communication systems
• Attenuation requirements in microwave circuits

Procurement Notes

Verify the specific datasheet version for the PE7046-6 to confirm mechanical dimensions and detailed electrical specifications prior to integration. Ensure that the 500 mW power rating aligns with the system's operational limits to prevent component damage. Confirm compatibility with 2.92mm mating connectors in the assembly design.

Selection Notes

Select this component when a 6 dB attenuation value is required at frequencies extending to 40 GHz. The 50 Ohm impedance matches standard RF systems. Consider the 2.92mm interface for high-density connections. Evaluate the 500 mW power limit against peak signal levels to ensure reliable performance under all operating conditions.

Part Context

This part belongs to Pasternack's line of fixed attenuators designed for precision RF applications. The 2.92mm series supports high-frequency performance beyond standard SMA or V-band connectors. Fixed attenuators like the PE7046-6 are essential for maintaining signal integrity and protecting sensitive downstream components from excessive power levels.

Replacement Considerations

Cross-reference with other 6 dB, 2.92mm fixed attenuators from Pasternack if availability is an issue. Verify that alternative parts match the 40 GHz frequency range and 500 mW power rating. Ensure identical connector gender and impedance specifications to maintain circuit continuity.
