PE7047-2

$226.30

Description：2 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:218ef6c6af22 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：2 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：2dB
Frequency Range：0 Hz ~ 12.4 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

PE7047-2

Overview

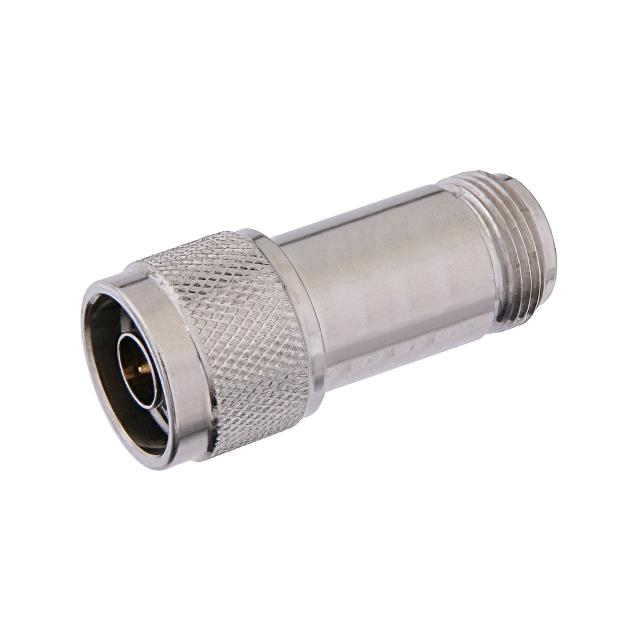

The Pasternack PE7047-2 is a fixed RF attenuator designed for high-frequency applications. It features N-type male to N-type female connectors and operates within an impedance of 50 Ohms. The device provides a precise attenuation value of 2 dB. It is rated for a maximum power handling capacity of 2 Watts and supports frequency ranges up to 12.4 GHz. The unit utilizes a passivated stainless steel body for durability.

Feature Summary

Fixed attenuation design with 2 dB precision
N-type male to N-type female connector interface
Passivated stainless steel construction

Applications

RF signal testing and measurement
Microwave system calibration
Telecommunications equipment integration

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with your system requirements. Confirm that the 2 Watt power rating and 12.4 GHz frequency limit align with your operational parameters. Check for any updated datasheets or revision notices from Pasternack before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 2 dB reduction is required in a 50 Ohm system. Ensure the N-type connector gender matches your cable assembly. Consider the 2 Watt power limit and 12.4 GHz upper frequency bound to verify suitability for your specific RF environment and signal levels.

Part Context

This model belongs to the Pasternack PE7047 series of fixed attenuators. These components are engineered for consistent performance in microwave and radio frequency circuits. The series offers various attenuation values while maintaining standardized N-type interfaces and robust stainless steel housing for reliable operation in demanding environments.

Replacement Considerations

Compatible substitutes include other Pasternack models within the PE7047 series, such as PE7047-6 or PE7047-12, if different attenuation values are acceptable. Ensure any replacement maintains the same N Male to N Female configuration and 50 Ohm impedance characteristics.
