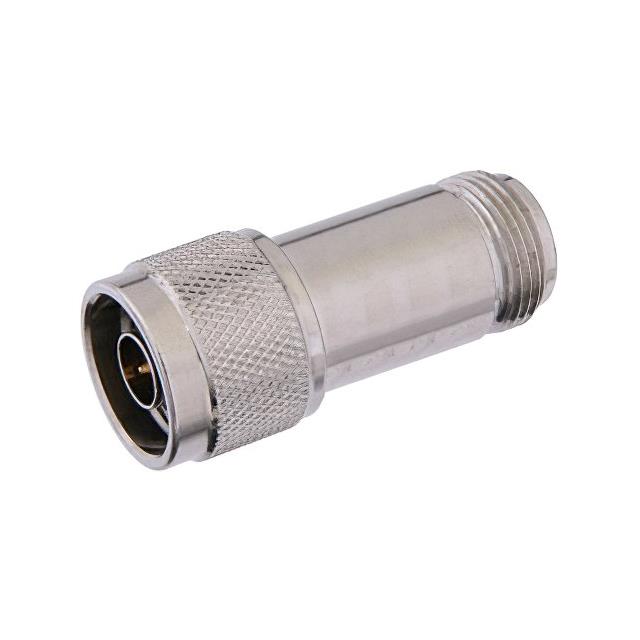

PE7047-6

Overview

The Pasternack PE7047-6 is a fixed coaxial attenuator designed for radio frequency applications. It provides a precise attenuation value of 6 dB across a frequency range from 0 Hz to 12.4 GHz. The device features N-type connectors with male gender on one side and female gender on the other, facilitating inline integration into RF systems. Constructed with a passivated stainless steel body, it ensures durability and environmental resistance. The unit is rated to handle up to 2 Watts of power at the specified attenuation level, making it suitable for various signal conditioning tasks in high-frequency environments.

Feature Summary

• Fixed 6 dB attenuation performance
• Wideband operation up to 12.4 GHz
• N-type male to female connector interface
• Passivated stainless steel housing

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching in microwave circuits
• Signal conditioning in communication systems

Procurement Notes

Verify the specific connector gender configuration (Male-to-Female) matches your system requirements before ordering. Confirm that the 2 Watt power rating and 12.4 GHz frequency limit are sufficient for your operational parameters. Ensure the passivated stainless steel construction meets your environmental durability needs. Cross-reference the part number PE7047-6 with official Pasternack documentation to confirm current availability and specifications.

Selection Notes

Select this component when a fixed 6 dB loss is required within the sub-12.4 GHz spectrum. The N-type interface offers robust mechanical stability compared to smaller connectors. Consider the power handling capability relative to your signal strength. The stainless steel body provides better corrosion resistance than standard brass variants. Verify compatibility with existing N-type cabling and adapters in your assembly.

Part Context

This model belongs to Pasternack's line of fixed coaxial attenuators. It shares the same physical form factor and connector style as other values in the PE7047 series, such as the PE7047-15 or PE7047-20. The primary distinction lies in the internal resistive element determining the attenuation value. This specific variant is engineered for general-purpose RF applications requiring stable, non-variable signal reduction.

Replacement Considerations

Direct substitutes include other Pasternack models with identical connector types but different attenuation values if the loss requirement changes. Generic equivalents may exist from other manufacturers offering N-type 6 dB attenuators, provided they meet the 12.4 GHz and 2 Watt specifications. Ensure any replacement maintains the same impedance and connector gender orientation.
