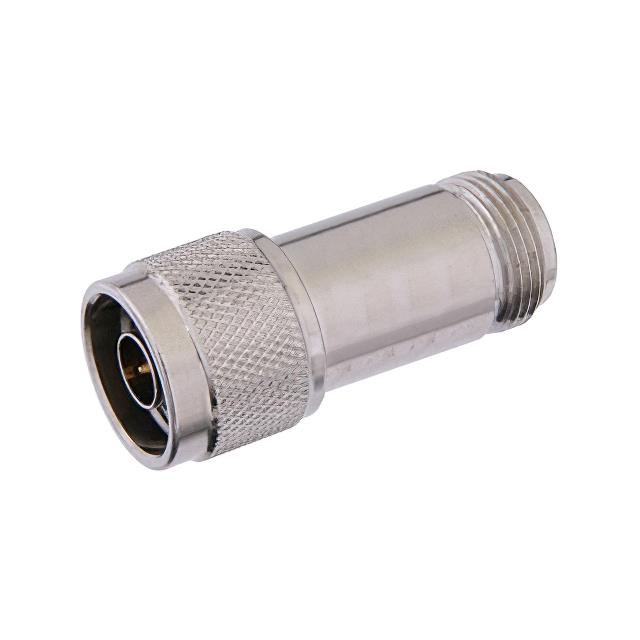

PE7047-7

$43.57

Description：7 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:857353ddb124 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：7 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：7dB
Frequency Range：0 Hz ~ 12.4 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

PE7047-7

Overview

The Pasternack PE7047-7 is a fixed RF attenuator providing 7 dB attenuation. It operates within a frequency range of 0 Hz to 12.4 GHz and features N-type connectors with male gender on side 1 and female gender on side 2. The unit is rated for up to 2 Watts power handling at the stated attenuation value. The housing consists of a passivated stainless steel body, ensuring durability in various environments.

Feature Summary

Fixed 7 dB attenuation value
N-type male to female connector interface
Passivated stainless steel construction

Applications

RF signal level adjustment
Test and measurement setups
Microwave circuit integration

Procurement Notes

Verify the specific part number PE7047-7 against official Pasternack documentation to confirm the 7 dB attenuation rating and 12.4 GHz frequency limit. Ensure compatibility with N-type connector interfaces and 2 Watt power requirements before procurement.

Selection Notes

Select this component when a precise 7 dB reduction is required in systems operating up to 12.4 GHz. Consider the N-type interface compatibility and stainless steel build for environmental resilience compared to other attenuation values or connector types.

Part Context

This model belongs to the Pasternack PE7047 series of fixed attenuators. Variants in this series offer different attenuation values such as 6 dB, 9 dB, 15 dB, 20 dB, and 40 dB, all sharing similar N-type connector configurations and power ratings.

Replacement Considerations

Direct substitutes include other PE7047 series models like PE7047-6 or PE7047-9 if attenuation adjustments are permissible. Verify that alternative parts maintain the same N-type gender configuration and power handling capabilities.
