PE7050-3

Overview

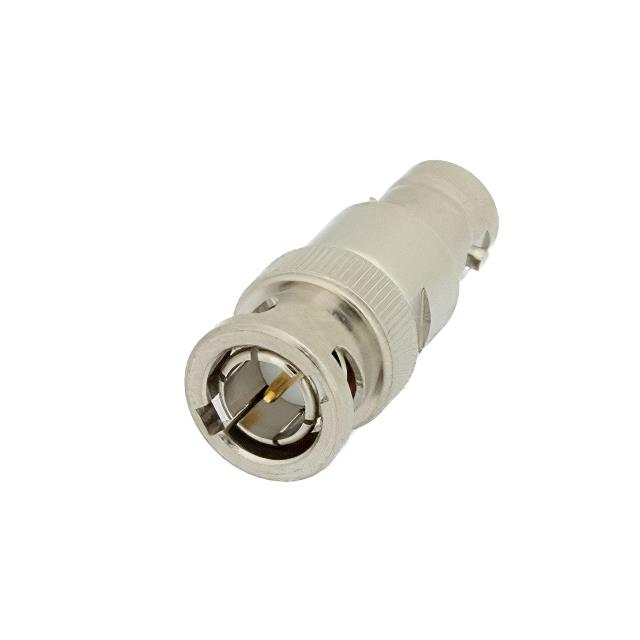

The Pasternack PE7050-3 is a 3 dB fixed coaxial attenuator designed for 75 Ohm systems. It features BNC male to BNC female connectors and a brass nickel-plated body. The component is rated for 2 Watts of power handling and operates within a frequency range of 0 Hz to 4 GHz.

Feature Summary

• Provides precise 3 dB signal attenuation in 75 Ohm environments
• Utilizes durable brass construction with nickel plating for corrosion resistance
• Supports standard BNC interconnects for straightforward integration

Applications

• RF test and measurement setups requiring impedance matching
• Signal conditioning in broadcast infrastructure
• Video distribution systems utilizing 75 Ohm cabling

Procurement Notes

Verify the specific connector gender configuration and impedance rating against system requirements before ordering. Confirm that the 2 Watt power limit and 4 GHz frequency ceiling align with operational parameters. Ensure compatibility with existing 75 Ohm infrastructure to maintain signal integrity.

Selection Notes

Select this model when a fixed 3 dB reduction is required in 75 Ohm circuits. Consider the BNC interface for ease of connection in lower frequency applications up to 4 GHz. Evaluate power handling needs to ensure the 2 Watt rating suffices for the intended signal levels.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators, which are engineered for stable performance in coaxial networks. The series offers various attenuation values and connector types to support diverse impedance requirements across communication and testing domains.

Replacement Considerations

Substitute only with identical 3 dB, 75 Ohm, BNC-to-BNC fixed attenuators from compatible manufacturers. Verify that replacement units meet the same 2 Watt power and 4 GHz frequency specifications to ensure circuit continuity.
