PE7050-30

Overview

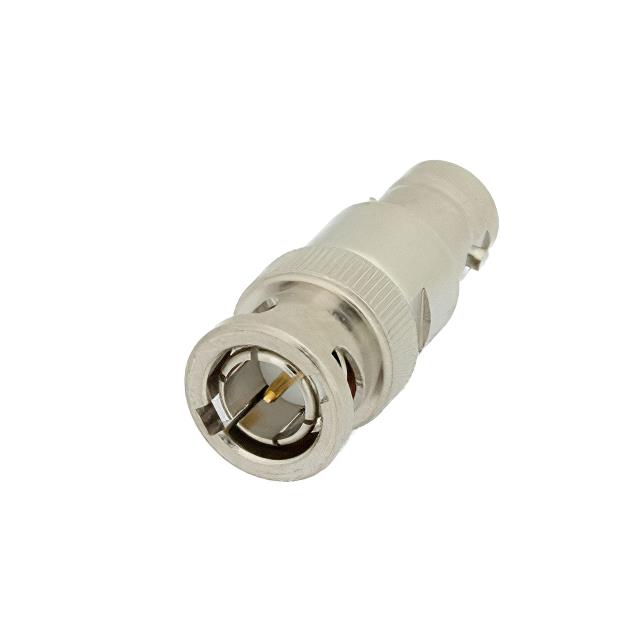

The PE7050-30 is a fixed coaxial attenuator manufactured by Pasternack. It provides a constant attenuation of 30 dB across a frequency range from DC to 4 GHz. The device is rated for a maximum power handling capacity of 2 Watts. It utilizes BNC connectors, specifically a male-to-female configuration, and features a brass body with nickel plating. This component serves as a module with integrated connectors for RF signal reduction applications.

Feature Summary

• Provides fixed 30 dB attenuation
• Operates from DC to 4 GHz
• Rated for 2 Watts power handling

Applications

• RF signal level adjustment
• Test and measurement setups
• Circuit protection via signal reduction

Procurement Notes

Verify the specific connector gender configuration (male to female) and impedance matching requirements against system specifications. Confirm that the 2 Watt power rating aligns with operational thermal limits. Ensure the brass nickel-plated housing meets environmental durability needs for the intended deployment environment.

Selection Notes

Select this model when a precise 30 dB reduction is required within the 4 GHz bandwidth. Consider the BNC interface compatibility with existing test equipment. Evaluate the 2 Watt power limit against peak signal levels to prevent component damage or performance degradation during operation.

Part Context

This part belongs to the Pasternack fixed attenuator series, designed for reliable signal attenuation in RF systems. It complements other variable and step attenuators by offering a static loss value. The product line focuses on providing standardized interconnect solutions for laboratory and industrial RF environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
