PE7050-6

Overview

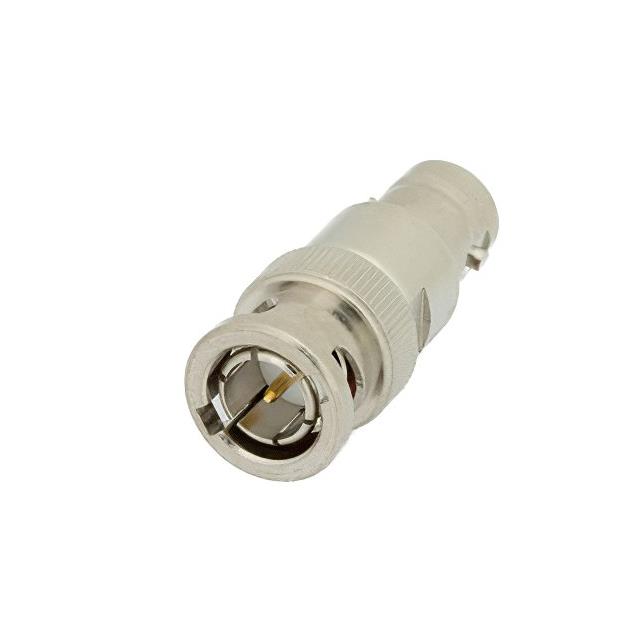

The PE7050-6 is a fixed attenuator from Pasternack, designed for 75 Ohm BNC Male to 75 Ohm BNC Female connections. It provides a nominal attenuation of 6 dB with a brass nickel body. The component is rated for up to 2 Watts of power handling and operates effectively up to 4 GHz frequency range.

Feature Summary

• Provides precise 6 dB signal attenuation in a compact form factor
• Features durable brass nickel construction for reliable performance
• Supports standard 75 Ohm impedance matching for video and RF applications

Applications

• Cable television distribution systems
• Video signal processing equipment
• RF test and measurement setups requiring 75 Ohm interfaces

Procurement Notes

Verify the specific part number suffix against official Pasternack documentation to ensure correct attenuation value and connector gender configuration. Confirm RoHS compliance status if required by project specifications. Cross-reference datasheet parameters such as VSWR and power rating with system requirements before procurement.

Selection Notes

Select this model when a fixed 6 dB reduction is needed within a 75 Ohm environment. Ensure the operating frequency does not exceed 4 GHz and power levels remain within the 2 Watt limit. Consider physical size constraints and connector orientation during integration into existing chassis or panel mounts.

Part Context

This component belongs to Pasternack's line of fixed attenuators, which offer various attenuation values and connector types. These devices are essential for controlling signal levels in RF circuits without introducing significant distortion or reflection, maintaining signal integrity across the specified bandwidth.

Replacement Considerations

Compatible substitutes include other 6 dB 75 Ohm BNC fixed attenuators from Pasternack, such as those in the PE7050 series with different attenuation values if adjustment is possible. Verify mechanical dimensions and electrical specifications match exactly when sourcing alternatives.
