PE7051-10

Overview

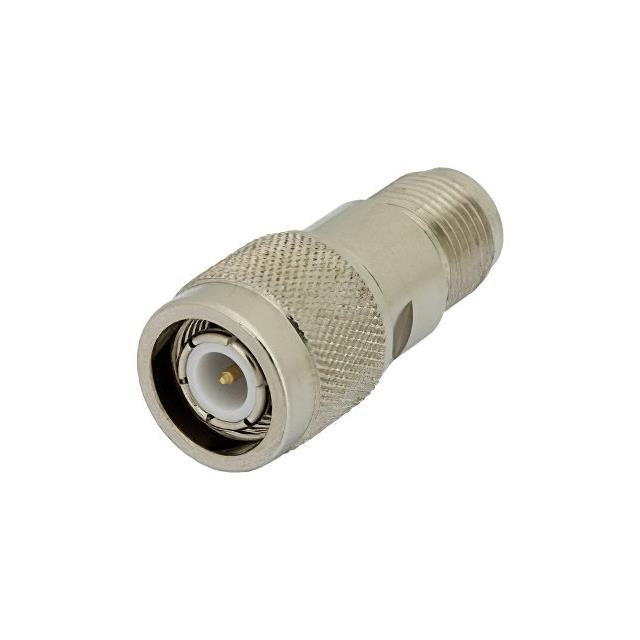

The PE7051-10 is a fixed attenuator manufactured by Pasternack. It provides an attenuation value of 10 dB. The device utilizes TNC connectors, featuring a male interface on one side and a female interface on the other. The housing is constructed from brass with a nickel finish. This component belongs to the series of fixed attenuators offered by the manufacturer.

Feature Summary

• Fixed attenuation capability at 10 dB
• TNC male to TNC female connector configuration
• Brass body with nickel plating

Applications

• RF signal level reduction
• Impedance matching in test setups
• Signal attenuation in communication systems

Procurement Notes

Verify the specific datasheet for the PE7051-10 model to confirm current technical specifications and compliance details. Ensure that the TNC connector gender and brass nickel construction align with system requirements. Cross-reference official documentation for any updates regarding material composition or performance characteristics prior to procurement.

Selection Notes

Select this component when a fixed 10 dB attenuation is required within a TNC-based RF environment. The brass nickel construction offers durability. Consider the physical dimensions and weight if space constraints exist. Verify frequency range limitations against application needs using the official datasheet.

Part Context

This part is part of Pasternack's line of fixed attenuators. It serves as a passive RF component designed to reduce signal power without introducing significant distortion. The TNC interface ensures compatibility with standard TNC-equipped equipment. The nickel-plated brass body provides corrosion resistance and mechanical stability.
